transformer oil filtration

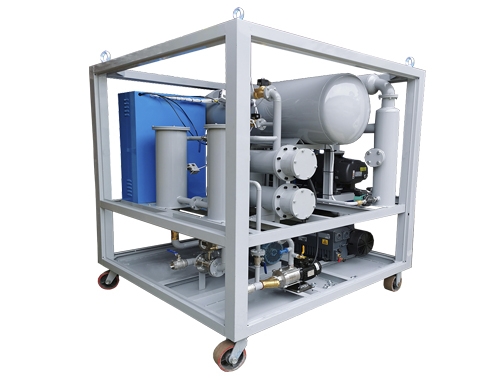

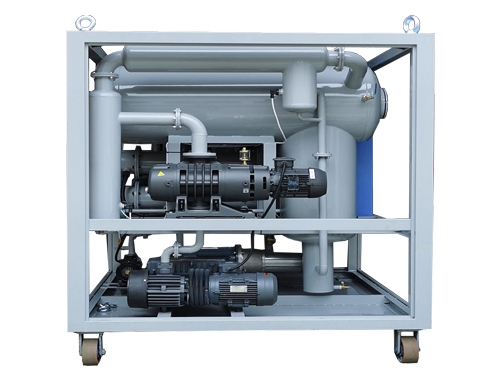

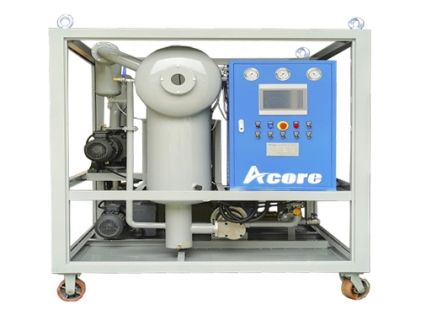

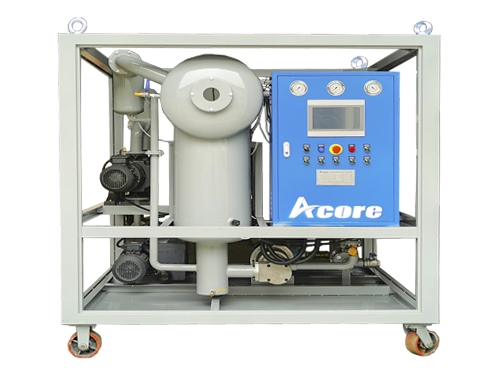

12000L/H High Vacuum Transformer Oil Filtration System

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP-200
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $25000-35000/set
contact now
description

DVTP-200 Double Stages High Vacuum Transformer Oil Filtration System is specially designed for on-line or

on-load efficient drying, degassing and filtration treatment of insulating oil filled in above 110KV EHV transmission and distribution equipment, substation and more than 500KV UHV transformers etc. This purification treatment can increases oil’s dielectric strength by effectively removing solid particles, gases and water, thus eliminating the need for expensive oil replacement, and thereby extending the life of the electrical equipment. This High Vacuum Transformer Oil Filtration System also can do transformers vacuum drying and vacuum oil-filling for electric equipment.


Features
1. Double stages vacuum pump system, horizontal double vacuum dehydration, degasification vessels and blower capable of pulling vacuum down to 0.05 mbar.
2. High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
3. Maximum moisture content 1000 ppm to be processed, and can achieve overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
4. Achieving soluble air and gas content of ≤0.05%
5. Achieving dielectric strength of ≥70kV.

Technical Specification:

Model

DVTP-200

Capacity(L/min)

200 (12000L/hr)

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 70KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

125

Total power (kw)

135

Inlet/outlet(mm)

55

Weight (kg)

1800

Dimension

(mm)

L

2100

W

1300

H

2200
