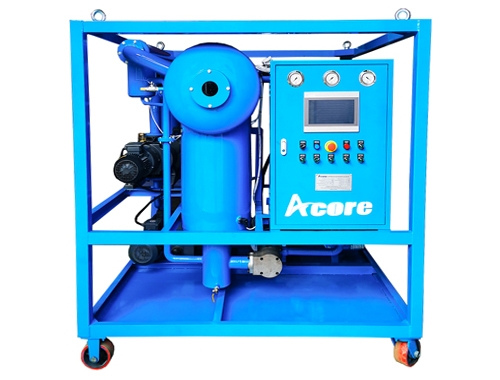

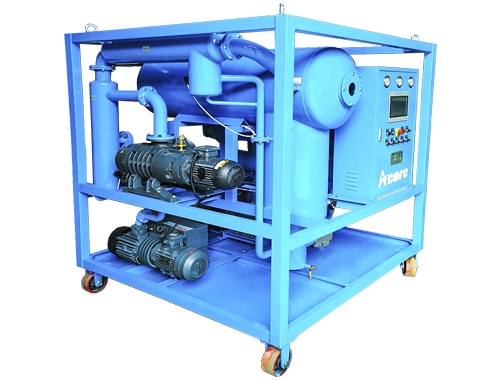

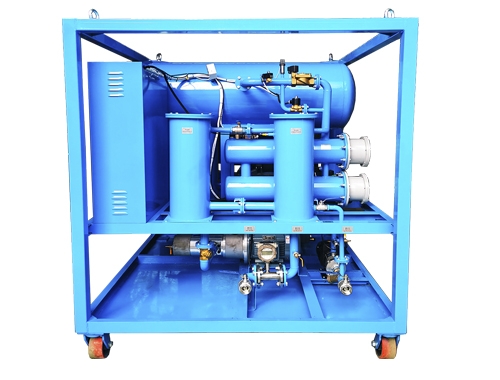

6000L/H High Vacuum Transformer Oil Filtration Machine

  • Product Origin:

    china
  • Brand:

    ACORE
  • Item No.:

    DVTP-100
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $20000-30000/set
contact now
description

  As many thousands of oil filled transformers containing large amount of insulation oils are in service today, during working of powers transformers, the insulating oils must have better dielectric strength. Our DVTP double stages vacuum Transformer Oil Filtration Machine can keep proper dielectric strength of transformer insulating oils by purification treatment.  The transformer oil purification plant can lower the amount of moisture, gasses dissolved as much as possible and also eliminate solid products of oil oxidation process for improving dielectric strength and maintain the characteristics of insulating oil.


Performance:
1. Double stages vacuum pump, horizontal double vacuum dehydration, degasification vessels and blower capable of pulling vacuum down to 0.05 mbar.
2. High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
3. Achieving soluble air and gas content of ≤0.05% and dielectric strength of ≥60kV per ASTM 877.

4. The Transformer Oil Filtration Machine can process maximum moisture content 1000 ppm and achieve overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.


Specifications



Model

DVTP-100

Capacity(L/min)

100 (6000L/hr)

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 60KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

  ≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

60

Total power (kw)

68

Inlet/outlet(mm)

44

Weight (kg)

900

Dimension

(mm)

L

1800

W

1150

H

2000
