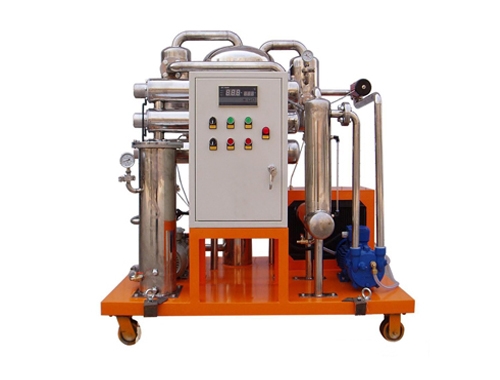

HFR Phosphate Ester Fire-resistant Oil Purifier
Product Origin:
ChinaBrand:
ACOREItem No.:
HFRShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT, LC, Western Union
Series HFR oil purifier is especially designed for phosphate ester fire-resistant oil with suitable material for vacuum dehydration, particles-removal and acid-reduction. This machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. HFR phosphate ester fire-resistant oil purifier adopts stainless steel materials which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties.
Feature
1. The tanks and pipelines where fire-resistant oil going through are all made of stainless steel.
2. Dehydrate by vacuum distillation, water content less than 100 ppm.
3. Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to monitor oil level in the tank, stop inputting oil when level marked high and keep inputting oil when low.
4. High quality filtering elements, large capacity for removing particles, anti-corrosion, good mechanical performance, cleanness up to NAS grade 6.
5. There is system with absorbent to solve acid problem.
6. After treatment, the important index-resistivity up to ≥ 6 x 109.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Specifications
Model
Unit
HFR10
HFR20
HFR30
HFR50
HFR100
Capacity
L/H
600
1200
1800
3000
6000
Working
vacuum
MPa
-0.06~-0.095
Working pressure
MPa
≤0.3
Demulsifying value
min
≤15/min(GB/F7035)+
Water content
ppm
≤5
Gas content
%
≤0.1%
Acid value
mKOH/g
≤0.01
Resistance value
Ω
≥6
x 109 Ω
Filtering accuracy
micron
≤1
Cleanness
≥
NAS 6 grade
Power supply
208V/220V/380V/400V/415V/440V/460V/480V/575V (±10%), 50/60Hz, 3Phase
Working noise
dB(A)
≤65~80
Temperature range
℃
40~60
Heating power
Kw
9
10
16
20
30
Total power
Kw
12
14
20
25
35
Weight
Kg
350
400
450
500
600
Dimension
L
mm
1200
1200
1200
1600
1700
W
mm
950
1000
1050
1200
1300
H
mm
1600
1650
1700
1800
1900
-
