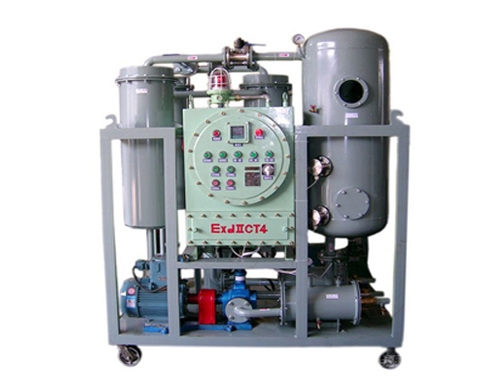

TJP ThermoJet Oil Purifier
Product Origin:
ChinaBrand:
ACOREItem No.:
TJPShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT ,LC, Western Union
TJP ThermoJet Oil Purifier provide an advanced and effective method of purifying industrial lubricants, hydraulic oils, turbine oils and similar fluids. It is well recognized that harmful effect of particles and moisture contamination in oils, and the contaminated oil is responsible for major maintenance and operational problems of critical components in lubrication systems. Water contamination typically is a result of condensation and leaks into system, which Increases corrosion in the system, oil oxidation and acid build-up. Particle contamination is a result of mechanical wear, dust, maintenance operations etc, which increase wear out of critical components and mechanical failures. TJP ThermoJet Oil Purifier can remove contaminants such as dissolved gases, light hydrocarbons, solids and water to return lubricants to like-new condition without any impact on the oil’s additives or properties. It is effective on a wide range of oils and viscosities (ISO 32-460) and delivers an environmentally clean discharge that meets EPA standards.
Features:
● Bring 5000 ppm of free, emulsified and dissolved water down to 50 PPM or less by vacuum dehydration and coalescing filter media.
● High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
● Achieving soluble air and gas content of ≤0.1%
● Different pressure gauge of filters monitor the condition of filter vessel and indicate replacement of filter elements.
● By electric heater with digital temperature controller, the oil is directly heated to a suitable temperature range of 20-100 ℃
● Installed directly on any oil’s reservoir as a by-pass oil cleaning unit or it can be used as a mobile machine
● Interlocking protection system connecting with pumps, heater and liquid level sensor to avoiding heating and pumping without oil, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
● Self-contained, skid mounted, stationary system or as a portable system
Technical Specifications:
Model
TJP10
TJP20
TJP30
TJP50
TJP100
TJP150
TJP200
TJP300
Capacity(L/min)
10
20
30
50
100
150
200
300
Working vacuum
-0.06～-0.095 Mpa
Working pressure
≤ 0.4 Mpa
Temperature range
0-100℃
Water content
≤50 ppm
Gas content
≤ 0.1%
Demulsifying value
≤15min(GB/F7035)
Cleanness
NAS 4-6 grade
Filtering precision
≤1 micron
Continuous work
100 hr
No
failure running
≥5000 hr
Power supply
208V/220V/380V/400V/415V/440V/460V/480V/575V
(+/-10%), 50/60Hz, 3Phase
Working noise
65 dB
Heating power (kw)
24
24
30
40
60
90
145
160
Total power (kw)
27
27
33.5
44
65
97
157
178
Inlet/outlet(mm)
25
25
32
32
48
50
58
65
Weight (kg)
300
350
400
500
800
1000
1200
1350
Dimension
(mm)
L
1200
1250
1400
1500
1650
1750
1900
2000
W
600
710
850
950
1100
1200
1250
1350
H
1280
1300
1300
1400
1800
1850
1950
2100
-
