Lubricating Oil Purifier
Lubricating Oil Purifier–Acore Filtration Co., Ltd July 14,2017.

Lubricating oil does not exhaust! However, the lubricating oil quality tends to degrade over time because of contaminants for example dirt, sludge, metals, as well as water to mention just a few. There are various ways to eliminate these pollutants, some becoming more effective compared to others. Typical methods consist of; strainers, purification, settling aquariums, and centrifugal type cleaners.


In the centrifugal type Lubricating Oil Purification procedure, there are 2 common techniques used. Formula is the set purification method where all the oil is actually removed from the storage container (sump, settler, etc . ) by the cleaner and is shipped cleaned to a different reservoir. This technique is typically carried out on equipment that is not working. The other technique is the constant process in which the centrifuge requires a portion of the actual oil from the tank, washes it, and also recycles this back to exactly the same tank. This process can be used upon operating gear but is not really as quick or effective as the order process.

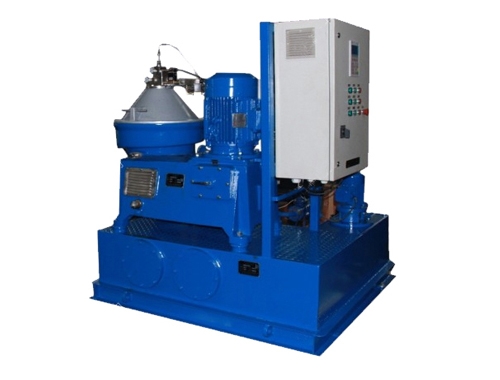

Disc-type Turbine Oil Centrifugal Separator

Lube Oil Centrifugal Machine can also be used because Separators or even Clarifiers. Separators use a atteinte ring or perhaps discharge engagement ring and get rid of water along with solids through the oil getting purified. Water is released from the air purifier. A clarifier is used once the main poison is sediments, and drinking water does not need to become removed from a method. Any a small amount of h2o that really does enter the centrifuge will remain within the bowl until it finally is washed.


Oil Centrifugal machin as occasionally catagorized since disk-type or maybe bowl-type devices according to the form and common arrangement from the centrifuge, plus some purifiers tend to be self-cleaning, while some must be by hand cleaned.


On the Patriot State, we now have a disk-type, non-self-cleaning air cleaner manufactured by ACORE, and utilized as a separator in the ongoing process.


Within a disk-type Lubricating Oil purifier, any bowl formed rotating component encases a collection of disks. The actual bowl by itself sits on top of the up and down bowl spindle which is powered by a earthworm gear along with clutch set up. The spindle and having absorbs the of the dish assembly. As soon as operating, the particular bowl re-writes at around 7500 rpm. As fluids and sediments of different densities enter with the distributor (the inner the majority of center in the bowl housing) of the centrifuge, they are rapidly separated through the tremendous centrifugal force developed by the speed of the centrifuge, and also from the close splitting up created by typically the shallow ranges of the person disks within the bowl real estate. The thoroughly clean oil moves up between neck on the top disk and the tubular shaft/distributor. When the centrifuge will be operating like a separator, water will release out involving the neck with the top compact disk and the relieve ring installed at the uppermost section of often the bowl best. Sediment, sludge and other components will be relocated to the within the bowl covering and will stay there until cleaned. It is very important note that the dimensions of the produce ring should be properly matched up for the thickness of the lubricating oil to become purified. In case you are to use the exact Lubricating Oil Purifier in order to centrifuge some other oils with assorted specific gravities, a different launch ring can be used for each.
