Kerosene Oil Purifier

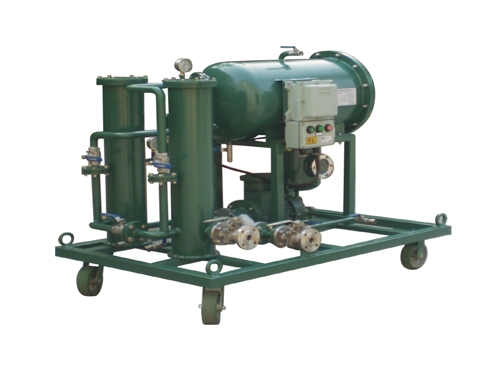

Kerosene (Fuel) Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    CSF
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $5000-20000/set
contact now
description

  The moisture and particulate contamination in fuels cause numerous problems, such as thermal oxidation stability, filter ability and equipment service life. To effectively and efficiently separate water and particles, we design coalescing type fuel oil purifier, it mainly used for filtration of light fuel, such as diesel, gasoline, kerosene etc, it combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. The high efficiency coalescence and separators filter elements are specifically designed to separate oil from water and water from oil quickly, together with oil mist from air. After separation, overall water content can reach 100 PPM.

Features
1. The coalescer elements are normally constructed using a pre-filter stage to protect the coalesce filters.
2. Rapidly removing large amount free & emulsified water from oil and as low as 100 PPM.
3. Removing particles down to NAS 6 grade cleanness level
4. Designed  for use on turbine lube oil, hydraulic oil, diesel fuel, heat transfer oil, dielectric oil etc.
5. Cart type, light weight, simple and reliable operation, low maintenance cost.


Technical Specification

Model

CSF-10

CSF-20

CSF-30

CSF-50

CSF-100

CSF-150

CSF-200

CSF-300

Capacity(L/min)

10

20

30

50

100

150

200

300

Working pressure

≤ 0.4 Mpa

Filtering precision

≤1 micron

Water content

≤100 ppm

Cleanness level

NAS 6 grade

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Total power (kw)

1

1

1

2

2.5

3

4

5

Inlet/outlet(mm)

32

32

32

32

44

50

58

65

Weight (kg)

300

350

400

450

520

760

900

980

Dimension

(mm)

L

1200

1300

1400

1500

1600

1650

1650

1750

W

750

800

900

950

1000

1050

1100

1200

H

1400

1500

1550

1600

1650

1700

1750

1850

inquiry now
