Acid Value Tester

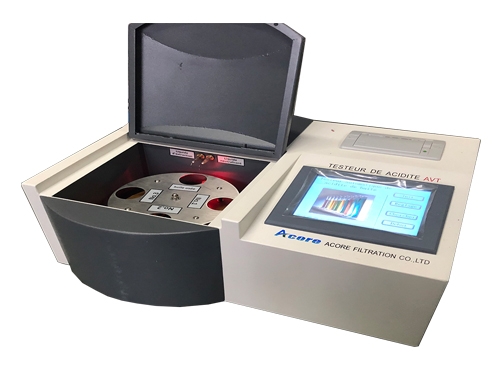

AVT Automatic Acid Value Tester

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    AVT
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $3000-5000/set
contact now
description

  In power system and industrial and mining enterprises have a lot of oil filled electrical equipment, transformer oil, and the acid value of turbine oil is a regular inspection items shall be measured. AVT automatic acid value tester is designed and made as per the standard of GB/T264-83 and ASTM D445 Petroleum Products, it is used for acid value analysis of insulation oil, turbine oil and other samples. AVT adopts new and advanced microprocessors, electronics, optical, mechanical and chemical integration design, which realizes high degree of automation and computer control, completely replaces manual operation, raised the working efficiency, reduces the labor intensity of workers, it makes the measurement accuracy, high positioning accuracy, the titration end point accuracy, reproducible results accuracy. The operation is simple, easy to use, strong anti-interference ability, stable and reliable. AVT can be widely used in electric power, chemical industry, environmental protection and other fields.


Features:

1. Using 320 x240 graphic dot matrix liquid crystal display screen, full screen, touch keys, friendly man-machine interface;

2. Using neutralization titration principle, use microcomputer to control automatically add liquid at room temperature, and titration, stirring, judge titration end point, LCD screen display and can print test results.

3. Color sensor coordinate titration end point detection, the judgment of end conditions is reliable.

4. Extract and neutralization liquid by a peristaltic pump control, high measuring accuracy.

5. History inquiry, instruments and automatic memory function, with the result of the experiment time automatic storage of record, and is not lost the data after power off, can be stored for more than 10 years, for later queries to print.

6. Calendar clock, temperature compensation, as accurate, record the date and time, determination in power to run more than 10 years;

7. Micro printer, thermal makes printing more beautiful and more quickly, with offline print function.


Specifications

power supply

AC220V±20%,50Hz±10%

Determination of acid value range

0.0001~0.50000mgKOH/g

The minimum resolution:

0.0001 mgKOH/g

Accuracy: acid value

0.001~0.1000 mgKOH/g

Allowed error range:

0.02 mgKOH/g

Acid value

0.1000~0.5000 mgKOH/g

allowed error range:

0.05 mgKOH/g

Ambient temperature

5~40

Relative humidity:

< 85% RH

Dimension:

420 x270x260 (mm)

Weight:

9 Kg



inquiry now
