Vacuum Evacuation Machine
Vacuum Evacuation Machine For Drying Transformers - ACORE Manufacturer April 2,2018.

VPS Vacuum Machine manufactured by ACORE FILTRATION CO.LTD is specially produced for transformers vacuum evacuation, it used the actual high-quality materials and the capacity from the machine depends on the dimension and capability of transformers. VPS Vacuum Machine For Transformer is mounted on 4 castor tires with raising hooks for easy moving and towing. The plant will probably be suitable for external use. The Proper protecting arrangement are going to be provided upon all this kind of parts, that are liable to trigger the incident. The design of vacuum machine will be in a way that parts could be easily changed.


VPS Transformer Vacuum Evacuation System contains roots rotary combination of the particular highly effective pumping potential of a machine pump and also roots pump with all required accessories to do the complete passing of transformers.

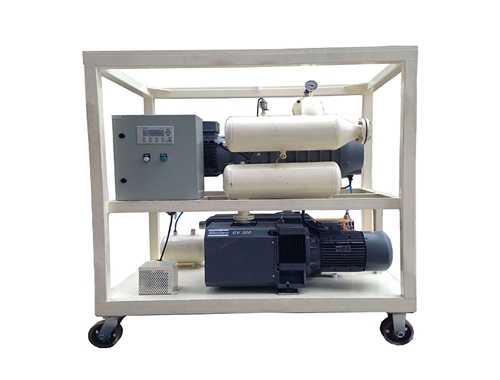

VPS Vacuum Pump Machine For Transformer Drying

Application of Transformer Vacuum Drying:

1. One Pirani (digital) vacuum gauge

2. One vacuum pressure switch

3. Piping: The actual piping utilized will be created metal tubing and also the joints may have flanged together ring closing.

4. Valves: vacuum ball valves, air valve, moisture discharging valve etc .

5. Control panel: Almost all electrical manage isolating set up, starter, providers, pilot light, push control keys, relays, showing lamps, metering and interlocking system are supplied in control panel, all electrical wiring will be nicely routed and wires terminations will be superbly identified together with ferrules.
