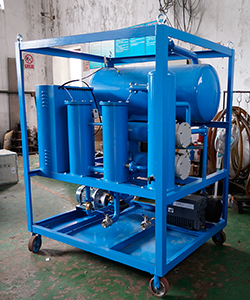

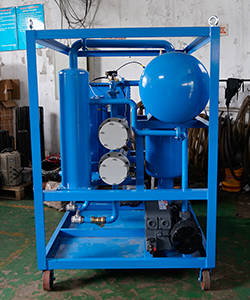

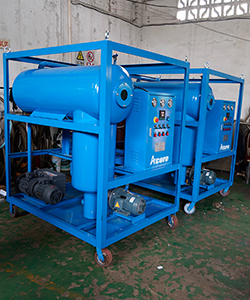

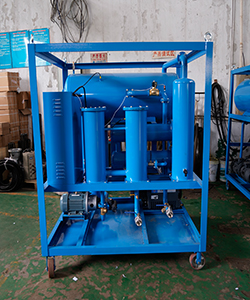

Acore Filtration Co.Ltd manufactures and sales 2 sets of VTP100(6000L/H) Vacuum Transformer Oil Purifier for Brazil transformers supplier, it is a single stage vacuum insulating oil purification machine, which adopts high efficiency dehydration and degassing system and high precision micron filtration system to recover the insulation characteristics of insulating oils.

The vacuum pump of the high-efficiency vacuum Insulating Oil Purifier draws out the air in the vacuum tank to form a vacuum. Under the action of atmospheric pressure, the external oil enters the primary filter through the oil inlet pipeline to remove larger particles, and then enters the heating tank and is heated to a The oil at 40-75℃ enters the vacuum tank, and the water in the oil evaporates rapidly into water vapor and is continuously sucked into the oil-water separator by the vacuum pump. The water vapor in the separator is cooled and reduced to water and then released. Meanwhile, the Oil Purification Machine also has condenser to collect the water and oil.

The filter element of VTP Transformer Oil Purifier is a porous filter element made of special material with a certain strength. Its function is to remove or adsorb the solid particles contained in the fluid on its surface to form small droplets that can be accommodated in the fluid, when the oil flows through a filter element with a certain size filter screen is installed, impurities of different sizes are blocked outside the filter element. The filters of Insulating Oil Purifier are many types according to the different occasions: such as coarse filter element, fine filter element, stainless steel sintered mesh filter element, etc.

VTP Single-stage Vacuum Transformer Insulating Oil Purifier is a filtration equipment that uses compressed air as power and pressure as thrust. It uses mechanical force or electrostatic force to separate, purify and recover the liquid to be filtered (generally harmful impurities) through the filter.
