Vacuum Transformer Oil Purifier
Double Stages High Vacuum Transformer Oil Purifier Manufacturer - ACORE February 13,2020.

DVTP Vacuum Transformer Oil Purifier is a oil purification treatment equipment that remove solid impurities, moisture and gas in oil, improves oil quality performance, and increases the dielectric strength of transformer oil. It is used in power plants, power stations, power companies, metallurgy, petrochemicals, railways and other industrial and mining enterprises for the purification treatment of unqualified insulating oils. It can also vacuum oil filling and vacuum drying electrical equipment.


When the Transformer Oil Purifier is working, the oil enters the primary filter through the inlet under the effect of the vacuum pressure. Large particles of impurities are filtered out. After the oil is heated by multi-level infrared, it enters a special personalized vacuum separator, gas is separated in vacuum. The device first forms a mist and then forms a film, so that the contact area in the vacuum is increased by hundreds of times. The moisture in the oil is quickly obtained under the conditions of high heat, high vacuum, large surface and high pumping speed. It is vaporized and discharged from the vacuum system.


The water vapor discharged from the upper part of the vacuum separator is first cooled and dehumidified by the condenser, and then cooled in the cooler. The condensed water is discharged into the water reservoir, and the condensed and dehumidified gas is discharged into the air by the vacuum pump. The oil in the vacuum separator is raised from negative pressure to positive pressure by an oil transfer pump. After filtering, the clean oil is discharged from the oil outlet to complete the entire oil purification process.


Transformer oil Purification Machine is mainly divided into two types: single vacuum transformer oil purifier and two-stage high efficiency vacuum transformer oil purifier.

High Vacuum Transformer Oil Purification Machine

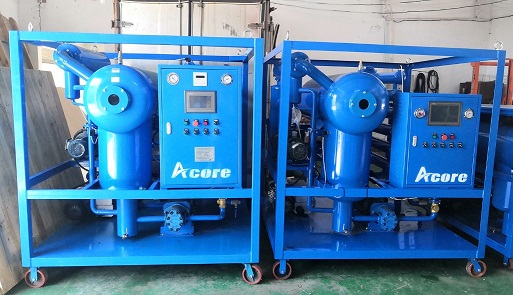

DVTP Double Stages High Vacuum Transformer Oil Purification Machine can quickly remove harmful components such as moisture, gas, and impurities in transformer oil, improve the insulation performance of transformer oil, and reduce the rust or corrosion of transformer equipment due to excessive moisture or impurity content in transformer oil , To extend the service life of oil equipment.


As a professional Oil Purifier Manufacturer, Acore DVTP Transformer Oil Purifier has a trinity interlocking electric automatic protection device (phase sequence protection, overload protection, over-voltage protection), adopts our company's special precision oil pump, low noise and meets the high standards of world environmental protection. Contact us: sales@acorefiltration.com
