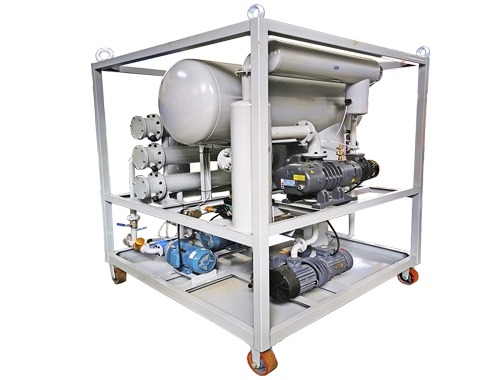

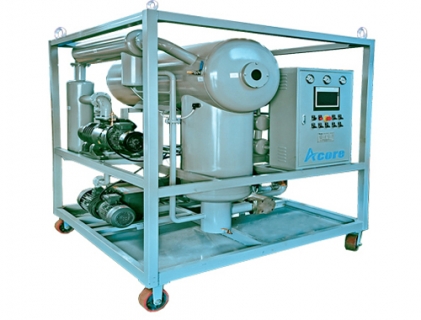

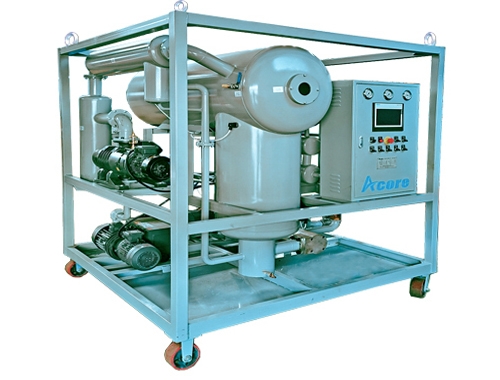

9000L/H High Vacuum Transformer Oil Purification Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP-150
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
  • Price Range:

    $20000-30000/set
contact now
description

   Acore Filtration Corp. developed DVTP-150 (9000 liters per hour) Double Stage High Vacuum Transformer Oil Purification Machine to reduce moisture, gasses content and remove particles, sludge for improving dielectric strength and maintain the characteristics of insulating oil. Through timely and proper purification of insulating oil, which can improve the properties of the entire isolation system, maintain the normal functioning, good work security and extend the life cycle of power transformers. The Transformer Oil Filtration System can reduce the amount of moisture, gasses dissolved as much as possible and remove solid products.


Features
1. Vacuum evaporation system is complicated by the multiple components concentrated in an absolutely sealed container to form a complete vacuum system.
2. The design of the control interlock protection device, over-voltage alarm shutdown protection, phase sequence protection to ensure a reliable long-term operation of the machine.
3. High precision filter elements with encryption filtering technology, the amount of pollutants received large.
4. Vacuum Transformer Oil Filter Machine adopts advanced design, high degree of automation, compact size, light weight, flexible and convenient mobile.


Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.


Specifications

Model

DVTP-150

Capacity(L/min)

150 (9000L/hr)

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 70KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

90

Total power (kw)

100

Inlet/outlet(mm)

50

Weight (kg)

1200

Dimension

(mm)

L

2000

W

1250

H

2150



inquiry now
