Transformers Dry Air Generator
Transformers Dry Air Generator Technical Specifications - ACORE Manufacturer April 25,2018.

Why the Transformers should use Dry Air Generator:

According to the DL/T573-95 transformer maintenance guideline, 110kV and above power transformers shall be protected by filled gas (up to a dew point of -40 C or less) during maintenance, so it must needs a equipment to supply dry gas.


During the overhaul of transformers, reactors and other large power equipment, the provided dry air can ensure that the internal insulation of the power equipment is not damp, and the maintenance worker will not suffocate due to lack of oxygen when working inside the equipment.


The dry air is safer, more reliable, economical and convenient than the use of nitrogen. It can be used to inspect the equipment when it is inflated with a Dry Air Generator. It is not affected by changes in outside weather conditions, especially during overnight operations. It is only necessary to seal the flanges at all locations. Drying air supply 0.02 -0.03MPa, without oil injection, transformers, reactors and other electrical equipment will not be damp, reducing the daily workload of pumping, oil injection, to shorten the maintenance period, improve the quality of the repair effect.


During the transformer transportation process, the transformer is connected to the Dry Air Generator, and the air is dried and purified by the Dry Air Generator so that the dew point of the dry air reaches -40°C and the gas purification accuracy is 20.01 μm. The transformer is not transported with oil. Inflate and ensure no leakage. It can greatly reduce the transportation costs of overweight transformers and avoid the possibility of an oxygen-deficient accident on site.

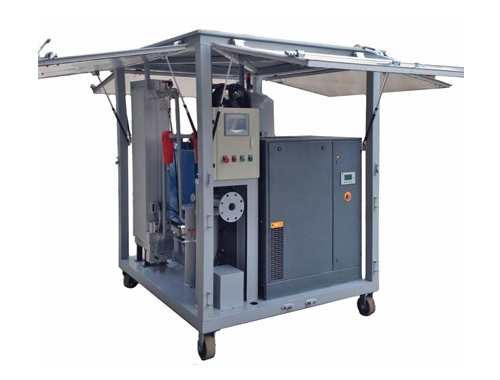

Transformer Dry Air Generator

Working Principle:

Transformer Dry Air Generator is a comprehensive use of the advantages of the cold and dry machine, suction dryer, coalescence oil-water separation, ultra-precision filtration, the freezing, adsorption, filtration and other three kinds of dry purification process scientific combination, through reasonable The pipe connections and capacity are matched to achieve the best economical operation and produce high quality and low dew point dry air. And integrated design, PLC automatic control, automatic detection of various operating parameters, compact and reasonable structure, good drying effect, low regeneration gas consumption, long working life, effective use of composite desiccant, life expectancy three times longer than ordinary adsorbent the above. Using computer program control, high efficiency, energy saving, safe and reliable.


Application of Air Drying Generator

Although the transformer was removed during transportation, the weight still exceeded 100 tons. In order to effectively reduce the transportation weight, large-scale transformers generally use the insulating oil inside the oil tank to make the transformer be transported in an oil-free state. Transporting transformers without oil can easily cause the insulation to get wet. Therefore, when filling without oil, fill the transformer tank with nitrogen gas to reduce the possibility of moisture in the insulation. As long as the fuel tank has a good seal, and the nitrogen filled in the fuel tank maintains a pressure of (0.02-0.03) MPa (dew point <-40°C), the phenomenon of moisture-proof insulation will not occur, so that oil-free nitrogen filling is reliable. However, the way to transport nitrogen is not only costly but also causes personal accidents due to lack of oxygen. In order to change this situation, dry air is used instead of nitrogen transport, that is, the transformer is connected to a dry air generator, and the air is dried and purified through a dry air generator so that the dew point of the dry air reaches below -40°C. The gas purification accuracy is 20.01μm. Inflate the transformer without oil transportation and ensure that there is no leakage. It can greatly reduce the transportation costs of overweight transformers and avoid the possibility of an oxygen-deficient accident on site.


Dry air generator is mainly used as a Transformer Drying Machine, and also widely used for supply dry air to reactors and other large-scale power equipments during maintenance, to ensure that the internal insulation of the power equipment . It is safe, reliable, economical and convenient than using bottled gas.
