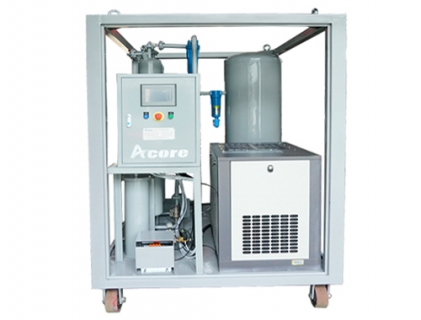

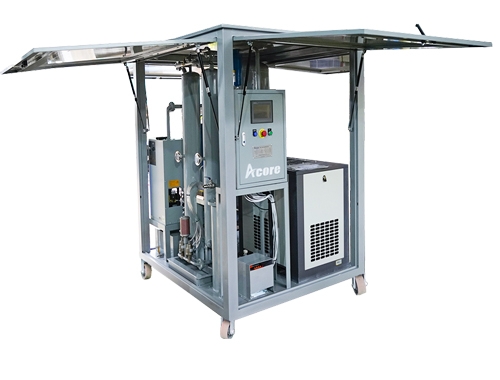

Air Drying System(Transformer Dry Air Generator)

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DHP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

  DHP Dry Air Generator is mainly used to supply dry air quickly and effectively for transformers and other industrial equipment, it adopts air compressing system, refrigerated air drying system, adsorption drying system, air purification system and PLC controlling system. This air drying and purification system uses low pressure oil-less compressed system and low-temperature condensation moisture removal technology, which solve the troubles caused by air with vapor & dust. DHP Dry Air Generator for Transformers has the features of small dimension, light weight, easy installation and operation, energy saving and high reliability.

Features

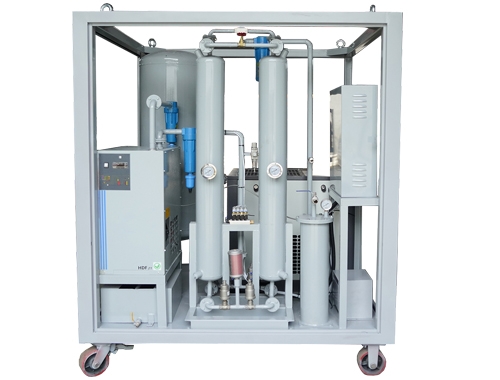

1. Transformer Dry Air Generator composed of by screw air compressor, dust filter, air cooler, air tank, vapor filter etc.
2. Refrigerated drying system and regenerative desiccant drying system
3. 100% Oil & Moisture free air with Dew Point of (-) 40℃ ( <80ppm) to (-) 70℃ ( 0.3ppm).
4. Pre-filter with automatic drain trap, results efficient pre-filteration
5. Fully automatic for operation, Low electric power consumption, Super dry air by low investment



Technical Specifications

Model

DHP-40

DHP-80

DHP-120

DHP-200

DHP-300

DHP-400

DHP-500

DHP-600

Capacity (m³/h)

40

80

120

200

300

400

500

600

Working pressure

(MPa)

0.70.8

Dew point

()

-55-70

Air pressure

(MPa)

0.010.8 (adjustable)

Compressor

(kw)

0.65

0.8

1

1.2

1.6

1.9

2.2

2.6

Total Power

(KW)

8

11

15

22

30

45

50

55

Coupling

(mm)

32

35

38

40

40

50

50

58

Weight

(kg)

800

1000

1350

2100

2360

2850

3500

3780

Dimension

(mm)

L

1850

2000

2240

2300

2300

2350

2950

3150

W

1540

1600

1690

1950

2000

2050

2100

2200

H

2400

2400

2400

2400

2430

2450

2750

2800
