Vacuum Pump Machine
VPS Vacuum Pump Machine Manufacturer for Transformer Drying September 7,2018.

VPS Vacuum Pump Machine for Transformers is used in vacuum smelting, welding, drying, chemical and pharmaceutical, electric vacuum devices and other industries as vacuuming. The working pressure of this unit is 133Pa-5pa, and the vacuum that can be achieved is 5Pa. It has the characteristics of quick start, high pumping speed, stable performance and easy operation. VPS Vacuum Pump Machine is especially convenient for vacuuming, vacuum oiling, vacuum drying, etc. of transformers or electric equipment. This machine can be equipped with an imported vacuum pump or an imported Roots pump as needed. The vacuum pump unit uses a Roots pump as the main pump and a rotary vane vacuum pump. An electromagnetic vacuum inflation valve is connected in series between the vane vacuum pump and the roots pump, and is opened and closed with the front stage pump switch. An electronic vacuum gauge can be installed at the inlet of Vacuum Pump Machine to accurately observe and control the vacuum of the pumped container.

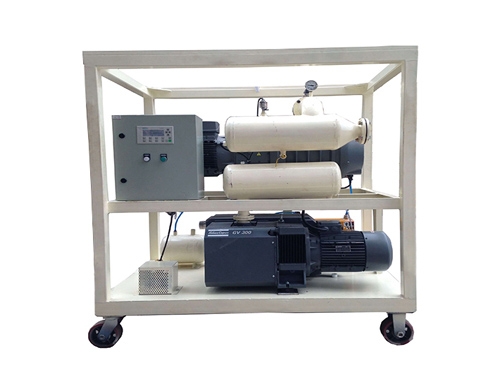

VPS Vacuum Pump Machine For Transformer Drying

●The Vacuum Pump Unit is user-friendly, quick to start, stable in performance, simple in structure and easy to operate.

● Configure the pipeline filter to prevent large particles of impurities from entering the system and damaging the vacuum pump.

●The standard configuration of the machine is closed, beautiful and convenient for customers to operate outdoors.

● Fully automatic control, which can realize unattended online operation, and the running status is displayed by indicator light

● According to the needs of users, optional PLC automatic intelligent control, touch screen operation, and dynamic display.

● Vacuum pumps, Roots pumps, electrical components, etc. are all domestic or international brands.

● Configure the digital vacuum gauge to instantly grasp the vacuum of the pumped container.

● The structure of Vacuum Pump for Transformer is generally mobile open type, which can be specially made into fixed type, fully enclosed type, semi-closed type, concealed type and canvas canopy according to user requirements.

● Customers can choose color and device material of Transformer Vacuum Pump Machine
