Lubricating Oil Purifier
Working Procedure of VLF Lubricating Oil Purifier - Acore Filtration Maker April 4,2018.

When the Lubricating Oil Purifier is working, the impurities is removed through a special two-stage filtering system, which is efficient and has a big capacity of holding pollutants. Meanwhile, the use of a special water separator and a dedicated vacuum separation molecular generator, the use of molecular demulsification, thin film evaporation combined with step cooling principle break emulsification separation, the evaporation area of oil in the vacuum separation molecular generator is expanded to several hundred times, and the evaporation interface is continuously updated. The moisture in the oil is rapidly vaporized and evaporated at the conditions of low heat, high vacuum, large surface, and high pumping speed, it is separated at the molecular free path.


The water and gas discharged from the upper part of the vacuum separator are cooled and dehumidified by the cooling system and finally discharged into the air by a vacuum pump.


After vacuum dehydration of Lubricating Oil Filtration Machine in the vacuum separator, the dried oil is pumped from the negative pressure to the positive pressure through the oil pump. After the fine filtration, the net oil is discharged from the oil outlet to complete the entire clean oil process.

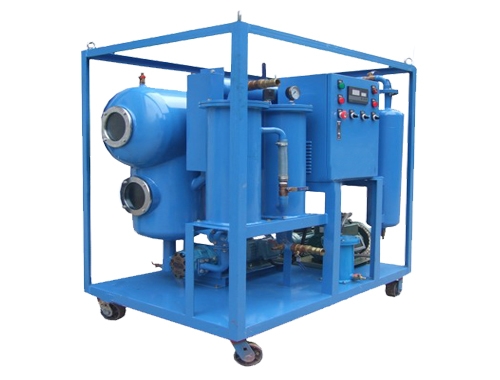

VLF Lube Oil Purifier

The lube oil in lubrication system through filtration process of Lubricating Oil Purifier, mechanical impurities and moisture values can reach the standard value. As a result, the lubrication system will not be damaged due to oil pollution and affect the service life of the equipment.


ACORE Filtration Co.Ltd designed VLF Lubricating Oil Filtration Machine with different functions for different sources of oil pollution. For example, the emulsification or water content is serious, client can choose a special coalescing oil water separation filters, if the mechanical particles are more serious impurities, client can choose micron filter with big capacity of holding particles. ACORE also design and produce oil purifier according client requirement. ACORE VLF Lubricating Oil Purifier can help clients for energy saving, environmental protection, improve the lifetime of lubrication system.
