Lube Oil Purifier

VLF Lube Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VLF
  • Shipping Port:

    Shanghai,Guangzhou,Shenzhen,Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

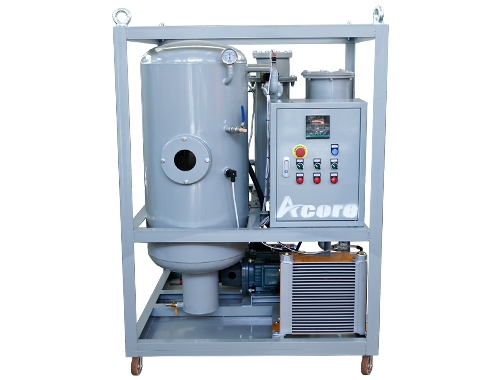

  VLF Lube Oil Purifier from Acore Filtration Co.,Ltd is developed to improve liquid quality by continuous removal of particles, sludge free water, emulsified and dissolved moisture from hydraulic and lube oils. The Lubricating Oil Purifier can remove 100% of free and emulsified water, 90% of dissolved water and bring water content down to 80 ppm by coalescence technology and vacuum dehydration, and removal of 100% one micron particulate by high precision fiber filter elements. VLF Lube Oil Flushing machine is ideal system for maintaining original property, ensuring optimal performance and extending service life of hydraulic and lube oils. It also help end-user reduce overall operational and maintenance cost of modern industrial lubrication systems


Features:

1. High-performance water, gas, and particulate separation system, which can remove 100% of the free water and 95% dissolved water, 100% of the free gas and 95% of dissolved gases and remove 98% of 1 micron particulate.
2. Minimizing fluid oxidation, maintaining lubricity properties and reducing aeration and acid build-up.
3. Low watt density oil heaters and digital temperature controller
4. High-quality filter elements with high dirt holding capacity, and filter elements can be cleaned or replaced.
5. Low maintenance requirements, minimal installation requirements and automatic operation
6. Automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic protection against fuel injection and many other advanced technologies to protect the equipment fully automated safe operation.


Technical Specification:

Model

VLF10

VLF20

VLF30

VLF50

VLF100

VLF150

 VLF200

VLF250

Capacity(L/min)

10

20

30

50

100

150

200

250

Working vacuum

-0.06-0.095 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20-80

Water content

≤20 ppm

Gas content

≤ 0.1%

Demulsifying value

≤8 min(GB/F7035)

Cleanness

NAS 6 grade

Filtering precision

≤1 micron

Continuous work

100 hr

No failure running

≥5000 hr

Power supply

208V/220V/380V/400V/415/440V/460V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

65 dB

Heating power (kw)

24

24

30

35

60

90

120

140

Total power (kw)

27

27

33

40

65

100

130

150

Inlet/outlet(mm)

25

25

32

32

48

50

58

62

Weight (kg)

300

350

400

500

800

1000

1200

1300

Dimension

(mm)

L

1100

1150

1200

1300

1500

1600

1700

1900

W

800

800

850

950

1000

1150

1250

1300

H

1200

1250

1300

1350

1500

1600

1800

1900
