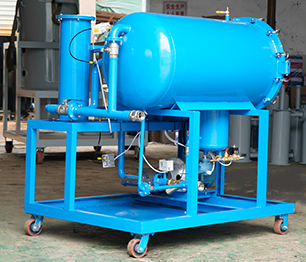

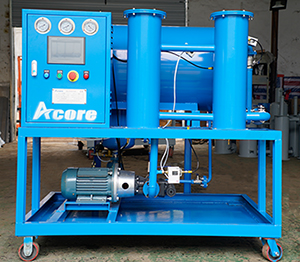

Acore Filtration Co.Ltd manufactured a set of CSF80 (4800-5000LPH) Coalescer Fuel & Oil Purifier for oil with large amount of water, the oil purifier adopts "coalescence separation" technology, which has high dehydration efficiency and strong performance, especially suitable for the separation of a large amount of water from the oil, CSF Coalescer Fuel & Oil Purifier can break all the oil-water emulsification structure. Meanwhile through the filtration of the micron filters, the cleanliness is stably controlled in the state required by the system to ensure the cleanliness of the oil. CSF Coalescence Separation Oil Purifier is especially suitable for the purification of turbine oil, hydraulic oil, gear oil, lube oil, anti-wear oil, bearing oil and other mixed industrial oil with large amount water content or turbidity emulsification.

Coalescer filters and separation filters of CSF Coalescence Separation Oil Purifier has following features:

1.The coalescer filter elements is made of hydrophilic material, and the tiny water droplets are adsorbed on the surface of the filter layer, causing the water droplets to coalesce, then settle and separate from the oil under the action of gravity. The oil after passing through the coalescence filter element still has smaller size, the water droplets move forward to the separation filter element under the action of inertia.

2. The separation filter element is made of special hydrophobic material. When the oil passes through, the water droplets are blocked from the outside of the separation filter element, and the oil is discharged from the outlet through the separation filter element.

CSF Coalescer Fuel & Oil Purifier has low energy consumption, low operating cost, excellent system configuration, strong continuous workability, suitable for online operation.
