Case
DVTP150(9000L/H) Transformer Oil Purifier and PT300(18000L/H) Oil Filter Cart to Brazil

September 7,2021.

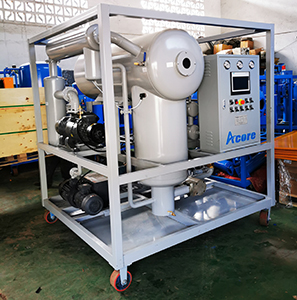

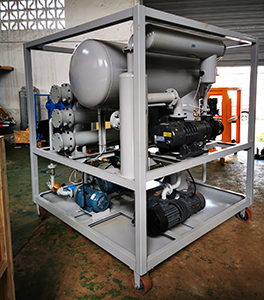

The DVTP150(9000 liters per hour) Vacuum Transformer Oil Purifier features a pre-filter, vacuum evaporation vessel, vacuum pump, roots pump, screw type oil pump, filtering elements, a condenser, etc. The transformers oil is sucked into the vacuum evaporation container through the pre-filter by feed pump. Then go to heater, it really is sprayed in to the vacuum step to become a good oil scrap. The water within the oil evaporates quickly in to vapor, which is compacted in the condenser and released. The uncondensed water watery vapor is cleared to the environment by a vacuum pump. Typically the oil gathered at the bottom from the vacuum evaporation tank as well as evaporated and also dehydrated is actually pumped to the micron filter, and the strong impurities inside the oil tend to be removed. DVTP Vacuum Transformer Oil Purifier may significantly enhance the effect of eliminating moisture through the oil and it is suitable for oil filtration process for high-voltage transformers.

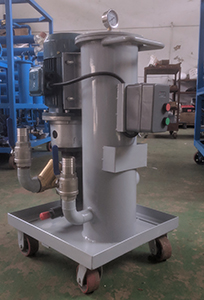

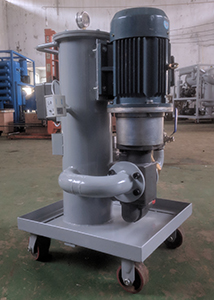

PT300(18000L/H) Portable Oil Filter Machine Carts is composed of an oil pump and micron filter, which is mainly used to oil filling, oil transferring or simple oil filtering process. Contact us for more technical information and good price at sales@acorefiltration.com


Transformer Oil Purifier Transformer Oil Purifier


Portable Oil Filter Machine Portable Oil Filter Machine
