Products
Centrifugal Oil Purifier

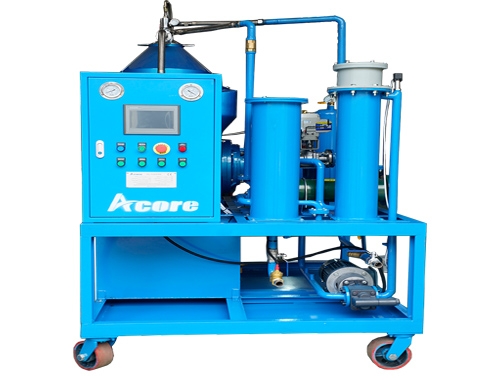

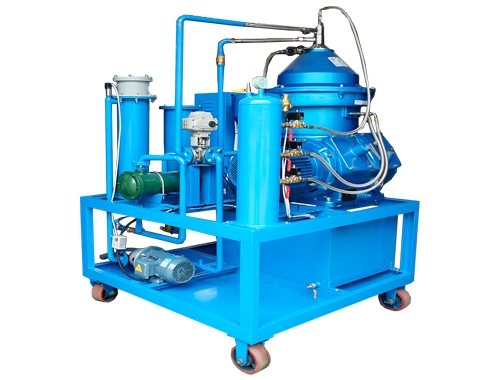

DCS Disc-type Centrifugal Oil Separator (Oil Purifier)

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DCS
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

  DCS Series Disc-type Centrifugal Oil Separator is mainly used for separation of free water and impurities from oil, it is wildly used for the clarification and purification of ship heavy diesel and turbine oil, reduce operating costs and extend the life of the engine. Meanwhile, DCS Series Disc-type Centrifugal Oil Purifier also can be applied to high viscosity lubricating oil, hydraulic oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil. DCS Series Disc-type Centrifugal Oil Separator can also be applied to other areas of non-homogeneous suspensions or emulsions separation.


Features:

1. An ultra-high speed separator to the continuous separation of solid impurities and moisture from the pending purification medium.
2. Automatic trash, continuous and efficient
3. Efficient new heating system, high efficiency, uniform heating.
4. Integrated multi-system, the operation is simple, safe and reliable.
5. Models of the design, manufacture and acceptance comply with the disc separator GB/T5745-2002 "marine"


Specification:

Model

Unit

DCS-10

DCS-20

DCS-30

DCS-40

DCS-60

DCS-80

DCS-100

Capacity

L/hr

1000

2000

3000

4000

6000

8000

100000

Separating-factor

a/g

8000

8400

8800

9400

10000

10600

11200

Running speed

r/min

7000-8000

Particles

μ

1

Water content

ppm

≤100

Pressure

MPa

≤0.2

Temperature

10-80

Cleanness



NAS 6 grade

Power Supply



380V, 50HZ, 3PH (Customerized)

Sludge-discharge



Automatic

Motor Power

kW

4

6

8

8

12

16

20

Heater Power

kW

24

27

30

35

45

55

65

Total Power

kW

28

33

38

43

57

71

85

Weight

Kgs

480

650

850

900

1000

1100

1200



Dimension



L

mm

1000

1000

1100

1200

1300

1350

1400

W

mm

700

750

800

900

950

1000

1100

H

mm

1000

1100

1100

1200

1250

1300

1350



Request A Quote
