mobile transformer oil purifier

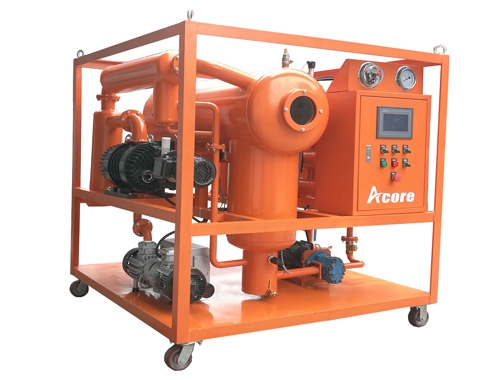

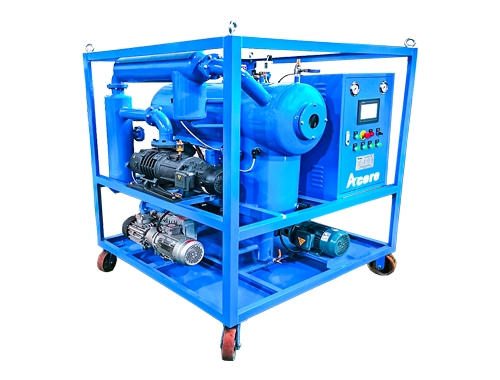

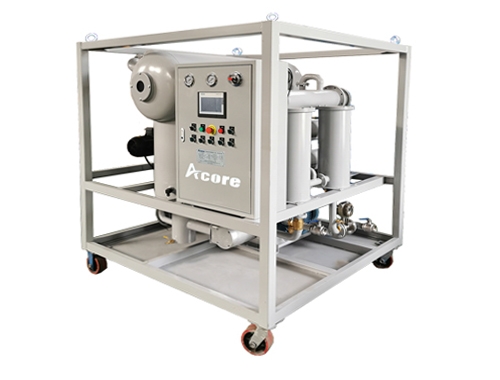

3000L/H High Vacuum Transformer Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP50
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description
   In order to lower the amount of moisture, gasses dissolved as much as possible, and also in order to eliminate solid products of oil oxidation process, the highly accepted concept of power transformers maintenance assume that activities of periodical purification of insulating oil are performed in the electric energy. For this purpose, Acore Filtration Corp. developed DVTP50 (3000 LPH) Double Stage High Vacuum Transformer Oil Purifier to reduce moisture, gasses content and remove particles, sludge for improving dielectric strength and maintain the characteristics of insulating oil. Through timely and proper oil purification of insulating liquids, which can improve the properties of the entire isolation system, maintain the normal functioning, good work security and extend the life cycle of power transformers.


Performance:

1. Double stages vacuum pump, horizontal double vacuum dehydration, degasification vessels and blower capable of pulling vacuum down to 0.05 mbar.
2. High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
3. Maximum moisture content 1000 ppm to be processed, and can achieve overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.

4. Achieving soluble air and gas content of ≤0.05% and dielectric strength of ≥70kV per ASTM 877.


Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.


Technical Specification:

Model

DVTP50

Capacity(L/min)

50 (3000L/hr)

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 70KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

208V/220V/380V/400V/415V/440V/460V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

65 dB

Heating power (kw)

30

Total power (kw)

34

Inlet/outlet(mm)

32

Weight (kg)

700

Dimension

(mm)

L

1600

W

1500

H

1500


Request A Quote
