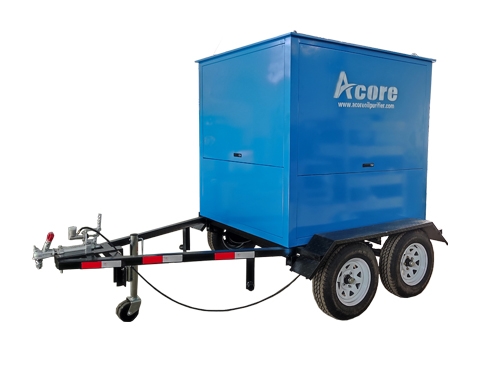

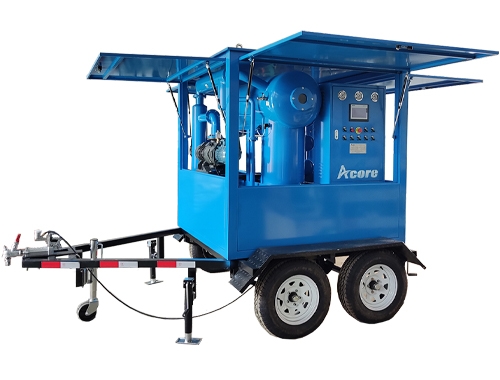

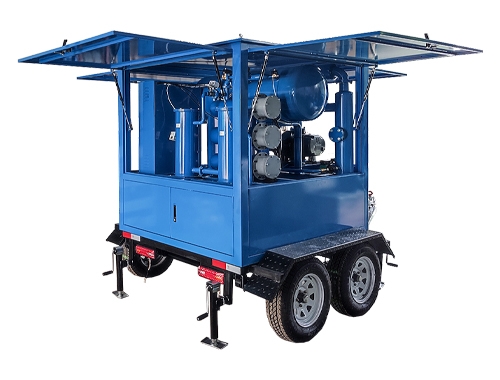

MTP Mobile Transformer Oil Purification Treatment Plant Mounted On Trailer
Product Origin:
ChinaBrand:
ACOREItem No.:
MTPShipping Port:
Shanghai, Ningbo, Shenzhen, GuangzhouColor:
optionLead Time:
10-20 daysPayment:
TT, LC, WU
MTP Mobile High Vacuum Transformer Oil Purification Plant Mounted On Trailer is developed for transformer oil degasification, dehydration and filtration processing onsite at outside. It adopts double stages high vacuum pumping systems with horizontal vacuum chambers and full enclosed structure with weather proof canopy. MTP Mobile High Vacuum Transformer Oil Treatment Machine with trailer can be carried out on road and off road. Meanwhile, it also works with other electrical insulating oil such as cable, circuit breakers, capacitor etc. The filtration process of MTP Mobile Vacuum Transformer Oil Purification Machine is able to maintain complete cleanness and improve dielectric strength of insulating oil.
Features

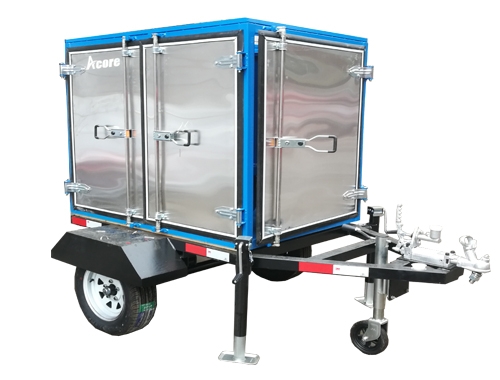

• Double axles or single axle trailer with functions of weather proof on road or off road.
• Transformer Dry-Out and Filling capabilities
• High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
• Overall water content of ≤3-5 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
• Achieving soluble air and gas content of ≤0.1%
• Achieve ≥70kV per ASTM 877 dielectric strength.
• Online Transformer Oil Purification Treatment, vacuum drying and vacuum oil-filling for electric equipment.
• Reducing overall operational and maintenance cost of power energy systems.
Optional: Online moisture monitor, flow meter, oil regeneration system, dielectric strength tester, etc.
Technical Specifications
Model |
MTP10 |
MTP20 |
MTP30 |
MTP50 |
MTP70 |
MTP100 |
MTP150 |
MTP200 |
MTP250 |
MTP300 |
|
Capacity(liters/hour) |
600 |
1200 |
1800 |
3000 |
4200 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Vacuum level |
-0.06~-0.099 Mpa |
||||||||||
Working pressure |
≤ 0.4 Mpa |
||||||||||
Temperature range |
20~80℃ |
||||||||||
Filtering precision |
≤1 micron |
||||||||||
Breakdown voltage |
≥ 70KV |
||||||||||
Water content |
≤ 3ppm |
||||||||||
Gas content |
≤ 0.1% |
||||||||||
Filtering particles |
≥99.5% |
||||||||||
Power supply |
208V/220V/380V/400V/415V/440V/460V/480V/575V (±10%), 50/60Hz, 3Phase |
||||||||||
Working noise |
68 dB |
||||||||||
Heating power (kw) |
15 |
24 |
30 |
36 |
60 |
72 |
108 |
132 |
150 |
185 |
|
Total power (kw) |
16 |
27 |
35 |
42 |
66 |
80 |
115 |
140 |
162 |
198 |
|
Inlet/outlet(mm) |
24 |
24 |
32 |
32 |
44 |
50 |
55 |
60 |
65 |
70 |
|
Weight (kg) |
600 |
650 |
750 |
900 |
1200 |
1500 |
1850 |
2200 |
2600 |
2900 |
|
Dimension (mm) |
L |
2300 |
2400 |
2500 |
2500 |
2800 |
3400 |
3600 |
3700 |
3900 |
3900 |
W |
1350 |
1350 |
1350 |
1600 |
1850 |
1850 |
1900 |
1900 |
2000 |
2100 |
|
H |
1800 |
1800 |
1850 |
1850 |
1900 |
1900 |
1950 |
1950 |
2000 |
2000 |
-
