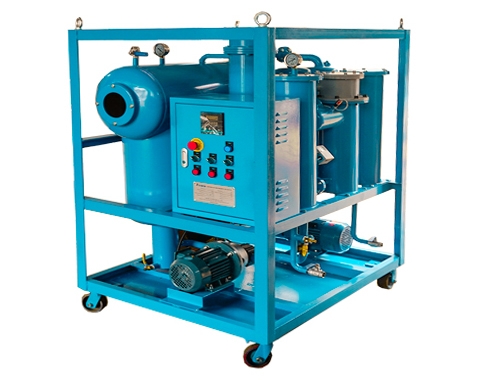

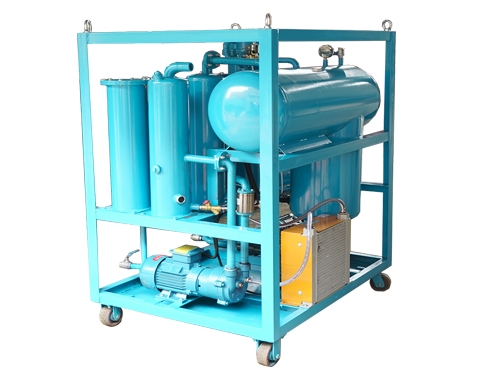

VHF Hydraulic Oil Filtration Machine
Product Origin:
ChinaBrand:
ACOREItem No.:
VHFShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT ,LC, Western Union
VHF Hydraulic Oil Filtration Machine is designed for continuous treatment of hydraulic oil by removing free, emulsified and dissolved water, free and dissolved gases, and particulate contaminants to prolong lifetime of hydraulic system. It utilizes high precision filter elements, digital temperature controller, vacuum monitor, pressure monitor and interlocked protection system to ensure maximum performance and reliability. VHF Hydraulic Oil Cleaning Machine can help users reduce operating costs and consumption, enhance life of hydraulic equipment.
Water, gas and impurities dissolved in oil has following influence
1. Reduce performance of equipment
2. Damage the lubrication system
3. Destroy the property
4. Accelerate the oxidation of oil
VHF Hydraulic Oil Filtration Machine can remove 100% free water, 100% dissolved gas and reduce dissolved water to 50 ppm. It also use high precision filter elements to remove 99% impurities. After purification by hydraulic oil filtration machine, the cleanness of oil can achieve NAS 6 grade.
Technical Specifications
Model
VHF10
VHF20
VHF30
VHF50
VHF100
VHF150
VHF200
VHF250
Capacity(L/min)
10
20
30
50
100
150
200
250
Working vacuum
-0.06~-0.095
Mpa
Working pressure
≤
0.4 Mpa
Temperature range
20-80℃
Water content
≤20 ppm
Gas content
≤
0.1%
Demulsifying value
≤8
min(GB/F7035)
Cleanness
NAS
6 grade
Filtering precision
≤1 micron
Continuous work
100 hr
No failure running
≥5000 hr
Power supply
208V/220V/380V/400V/415/440V/460V/480V/575V
(+/-10%), 50/60Hz, 3Phase
Working noise
65 dB
Heating power (kw)
24
24
30
35
60
90
120
140
Total power (kw)
27
27
33
40
65
100
130
150
Inlet/outlet(mm)
25
25
32
32
48
50
58
62
Weight (kg)
300
350
400
500
800
1000
1200
1300
Dimension
(mm)
L
1100
1150
1200
1300
1500
1600
1700
1900
W
800
800
850
950
1000
1150
1250
1300
H
1200
1250
1300
1350
1500
1600
1800
1900
-
