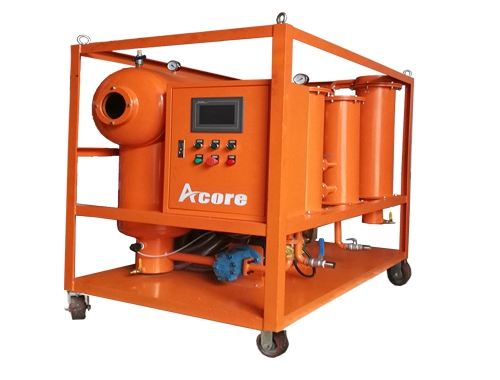

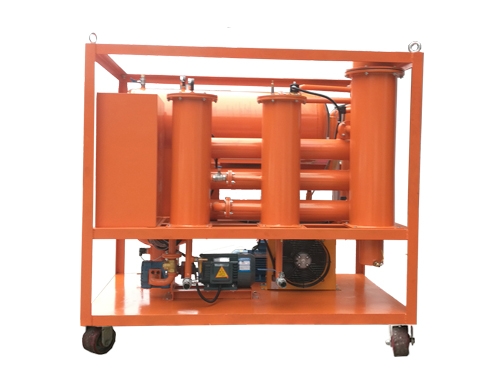

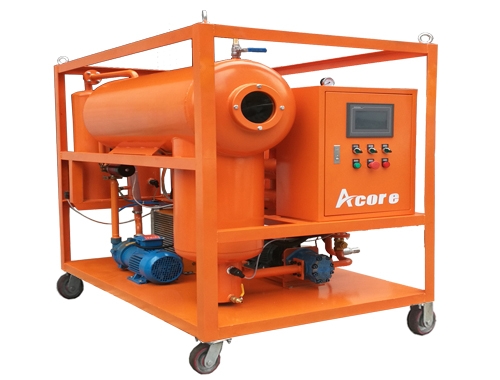

TOP Turbine Oil Purifier
Product Origin:
ChinaBrand:
ACOREItem No.:
TOPShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT ,LC, Western Union
TOP Vacuum Turbine Oil Purifier (Oil Purification System) utilizes vacuum dehydration combining with coalescing & micro-glass filters media technology into one system for efficient and cost-effective oil purification and maintaining absolute cleanliness of turbine lube oil. Coalescing filters remove mass free water, vacuum dehydration removes moisture dissolved and micro-glass filters remove mechanical particles. TOP Turbine Oil Purification Plant is ideal oil purifier for extending turbine oil life and has the features of low maintenance and operation cost.
Features:
1. Advance technology and design,with a steam turbines online and offline processing, high degree of automation, compact size, mobile and flexible structure.
2. Coalescence filters with oil-water separation technology to optimize the combination of dehydration.
3. Bring 5000 ppm of free, emulsified and dissolved water down to 50 PPM. Achieving filtering rate 1 micron or high
4. Temperature range of 20-100
5. Automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic protection against failure etc. to protect the equipment safe running.
5. Self-contained, skid mounted, stationary system or as a portable system
6. Ideal Turbine Oil Purifier for lube oil in combustion turbine, steam turbine, hydro turbine etc.
Technical specifications
Model
TOP10
TOP20
TOP30
TOP50
TOP100
TOP150
TOP200
TOP300
Capacity(L/min)
10
20
30
50
100
150
200
300
Working vacuum
-0.06~-0.095
Mpa
Working pressure
≤ 0.4 Mpa
Temperature range
0-100℃
Water content
≤30 ppm
Gas content
≤ 0.1%
Demulsifying value
≤15min(GB/F7035)
Cleanness
NAS 6 grade
Filtering precision
≤1 micron
Continuous work
100 hr
No failure running
≥5000 hr
Power supply
208V/220V/380V/400V/415/440V/460V/480V/575V
(+/-10%), 50/60Hz, 3Phase
Working noise
65 dB
Heating power (kw)
24
24
30
40
60
90
145
160
Total power (kw)
27
27
33.5
44
65
97
157
178
Inlet/outlet(mm)
25
25
32
32
48
50
58
65
Weight (kg)
300
350
400
500
800
1000
1200
1350
Dimension
(mm)
L
1200
1250
1400
1500
1650
1750
1900
2000
W
600
710
850
950
1100
1200
1250
1350
H
1280
1300
1300
1400
1800
1850
1950
2100
