vacuum transformer oil dehydration

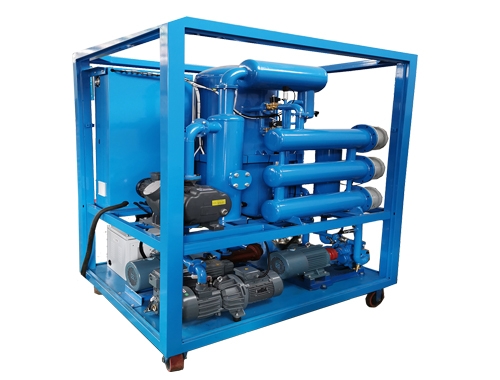

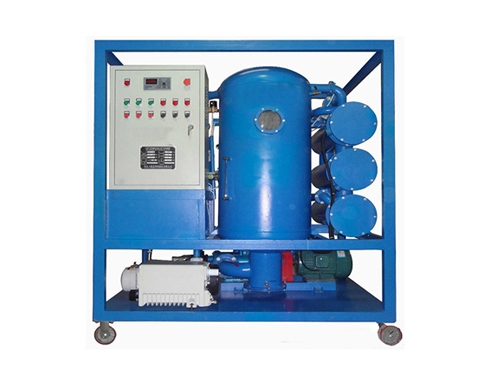

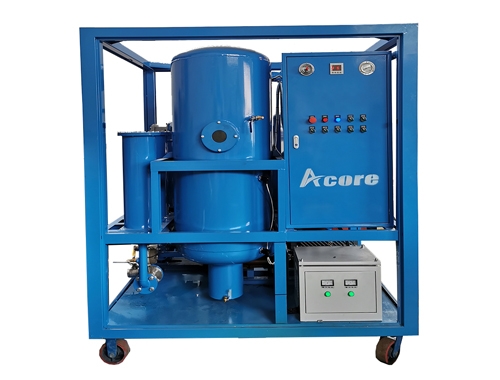

VDF Vacuum Dehydration Oil Purification Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VDF
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    option
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
contact now
description

  ACORE design and build the most effective, reliable Vacuum Dehydration Oil Purification System(VDF), which maintains completely clean and dry of liquids by continuous removal of particles, free and emulsified water, gas and sludge. Vacuum Oil Dehydration is the most effective method of water removal at minimum cost, it can achieve overall content down to 10 PPM. Using high performance rated multi-stage filter elements to removes particles as small as 1 micron with 99% efficiency. Meanwhile, VDF also can remove free, entrained and dissolved gases by vacuum distillation. It is are very effective, durable, and user-friendly high Vacuum Dehydration oil purification system on the market today.



Feature

1. High performance removal of water, gas and particulate

2. Low watt density oil heaters to prevent coking or burning of the oil

3. Remove 100% of free water and gases, and up to 80% of dissolved water and gases

4. Absolute rated particulate filters available in retention ratings from 1-40 microns

5. Dry-sealed rotary vane vacuum pump and positive displacement oil pumps

6. Phase reversing switch, dirty filter indication light and alarm condition lights for low oil level, high oil level, low flow, high heat and electrical phase

7. Extension of fluid service life

• Minimized corrosion within systems

• Reduced fluid disposal

• Reduced operating costs

• Increased equipment reliability

• Simple automated operation



VDF Vacuum Dehydration Oil Purification Systems can be used on following applications:

Lubricating Oil

Transformer Oil

Hydraulic Liquid

Turbine Oil

Compressor Oil

Cooling mineral oil

Insulating Oil

Gear Oil

Engine Oil



Technical Specifications

Model

VDF10

VDF20

VDF30

VDF50

VDF100

VDF150

VDF200

VDF250

VDF300

Capacity(L/min)

10

20

30

50

100

150

200

250

300

Working vacuum

-0.06-0.095 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20-80

Water content

≤20 ppm

Gas content

≤ 0.1%

Demulsifying value

≤8 min(GB/F7035)

Cleanness

NAS 6 grade

Filtering precision

≤1 micron

Continuous work

100 hr

No failure running

≥5000 hr

Power supply

208V/220V/380V/400V/415/440V/460V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

65 dB

Heating power (kw)

24

24

30

35

60

90

120

140

150

Total power (kw)

27

27

33

40

65

100

130

150

165

Inlet/outlet(mm)

25

25

32

32

48

50

58

62

65

Weight (kg)

300

350

400

500

800

1000

1200

1300

1350

Dimension

(mm)

L

1100

1150

1200

1300

1500

1600

1700

1900

2000

W

800

800

850

950

1000

1150

1250

1300

1350

H

1200

1250

1300

1350

1500

1600

1800

1900

2000



Request A Quote
