Transformer Oil Filtration Treatment Machine

Online & Offline Transformer Oil Filtration Treatment Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 Days
  • Payment:

    TT, LC, Western Union
contact now
description

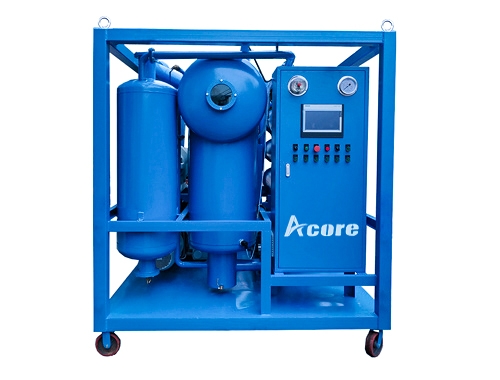

ACORE Filtration Co.Ltd designed and manufactured DVTP High Vacuum Transformer Oil Filtration Machine for online and off-line purification treatment of transformers, it adopts double stages high vacuum pumping system with dehydration and degassing chambers, which can remove free water, dissolved water and gases much more completely. Meanwhile, The Transformer Oil Filtration Treatment Machine has micron filtering elements to remove solids contaminants.


DVTP High Vacuum Transformer Oil Treatment Machine  is suitable for dealing with waste and new electric insulating oils, such as transformer oil, switch oil, capacitor oil, cable oil, circuit breakers and other insulating oils. It adopts advanced vacuum separation technology combining with film evaporation and drying for  high-efficiency degassing and dehydration. The use of composite micro-filtration technology, strong capacity of holding contaminants and high filtration accuracy. Meanwhile, The transformer oil filtration machine also can be applied for vacuum drying and oil filling of electrical equipment.


Features

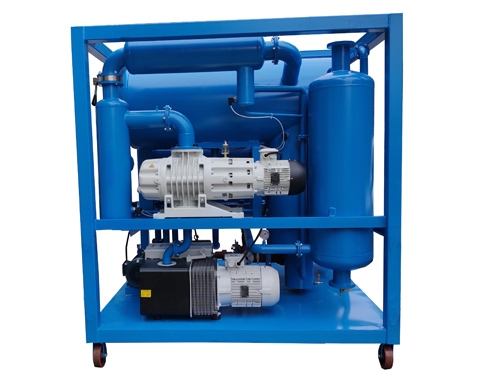

1. Double stages vacuum evacuation systems, high efficiency dehydration and degassing

2.  High precision micron filters remove 99% impurities of less than one morion.

3. New high-efficiency electric heating system, low heating load, uniform heating, low energy consumption

5. Automatic infrared liquid level controller, pressure protection system, simple operation, safe and reliable

6. Automatic interlock protection system (phase sequence protection, overload protection, overheating protection, overvoltage protection, etc) works together with heater, oil pump, liquid level controller, foam eliminator, etc. to realize completely safe running.

7. Automatic PLC controlling system realize fully automatic operation without attendant

8. Online and off-line purification treatment of transformer oils, unique vacuum drying and oil filling of transformers.


Optional: Online moisture measuring transmitter, flow meter, fuller earth regeneration device, weather proof structure, double axles or single axle trailer, dielectric strength tester, etc.


Technical Specifications

Model

DVTP30

DVTP50

DVTP70

DVTP80

DVTP100

DVTP150

DVTP200

DVTP250

DVTP300

Capacity(L/hour)

1800

3000

4200

4800

6000

9000

12000

15000

18000

Vacuum pressure

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20-80

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

208V/220V/380V/400V/415V/440V/460V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

65 dB

Heating power (kw)

30

36

60

60

72

120

150

180

215

Total power (kw)

36

42

66

66

80

133

165

195

230

Inlet/outlet(mm)

32

32

44

44

44

50

55

60

65

Weight (kg)

600

650

750

800

900

1200

1800

1950

2100

Dimension

(mm)

L

1500

1550

1600

1700

1800

2000

2100

2150

2300

W

1450

1450

1500

1550

1650

1750

1850

1950

2000

H

1500

1600

1650

1700

1800

1880

1980

2050

2100
