transformer oil filtration machine

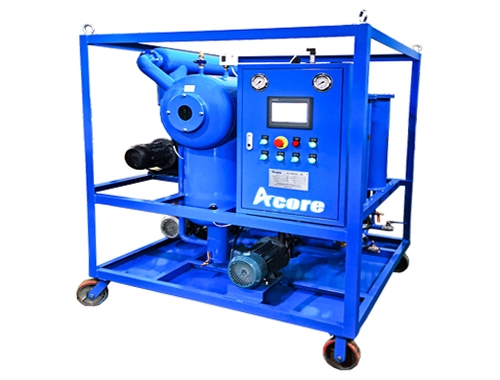

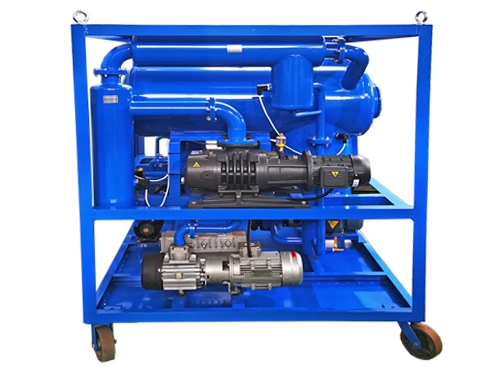

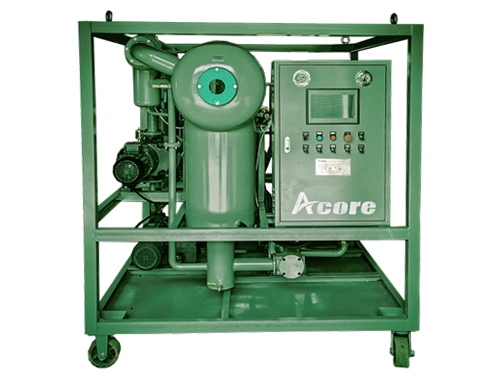

4000L/H High Vacuum Transformer Oil Filtration Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP-65(4000L/H)
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $10000-20000/set
contact now
description

  DVTP-65(4000 liters per hour) Double Stages High Vacuum Transformer Oil Filtration Machine allows the purification processing in workshop, in storage tanks, drums or directly online purification of transformer oil in the field. Purification of oil in transformers can be carried out off-load or on-load depending upon customers' preference. The Transformer Oil Filter Machine also allows efficient drying of the insulating coil and vacuum evacuation of transformers while maintaining the transformer and also can be for transformers oil-filling.


Performance
1. Remove free, emulsified, and dissolved water by vacuum dehydration & mass transfer
2. Remove dissolved air and entrained gasses by vacuum with performance of 100% free & >90% dissolved
3. Achieve > 70kV per ASTM 877 dielectric strength

4. Reduce particle counts to meet ISO 14/12/10 levels with 1 micron absolute

5. Reduce overall water content to 3 ppm after purification by transformer oil filtration machine.


Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.



Technical Specifications

Model

DVTP-65

Capacity(L/H)

4000

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 70KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

35

Total power (kw)

40

Inlet/outlet(mm)

32

Weight (kg)

750

Dimension

(mm)

L

1400

W

1000

H

1550




inquiry now
