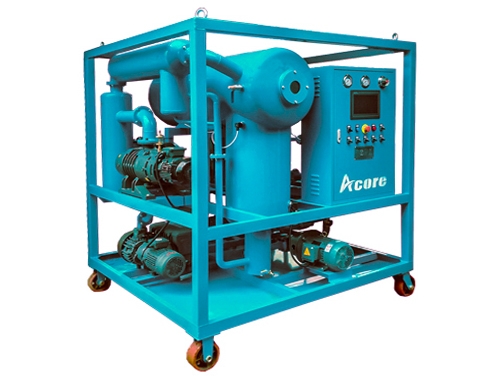

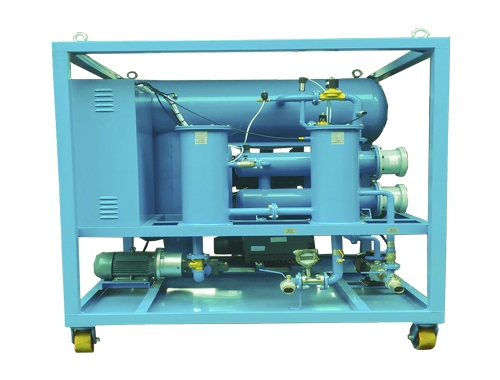

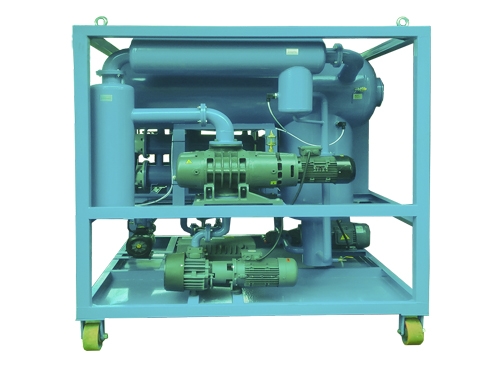

5000L/H High Vacuum Transformer Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP-80
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $15000-25000/set
contact now
description

  DVTP-80(5000 liters per hour) Double Stages Vacuum Transformer Oil Purifier is mainly used to separate impurities, dehydration, degassing and improve the quality of used transformer oils. It mainly adopts vacuum purification principle, Italian three-dimensional flash technology, thin film evaporation technology and multi-stage precision filtration, so that the Transformer Oil Purification Machine can remove the water, impurities, gas and other harmful substances from oil and reach new oil standards. This device also has the functions of oil pumping, oiling, vacuum drying, hot oil circulation filtering etc.


Main functions of Transformer Oil Processing as following:

• Three-dimensional thin-film evaporation technique with a nebulizer, a separator, a reaction chamber, polyethylene fuel tanks, exhaust chamber, defoamer, observation window.
• Making oil mist spray into the vacuum spray separation system
Oil mist into the reactor forms a film, which greatly improving dehydration and degassing rate.
• Between the reactor and polyethylene tank where the water, gas, and oil is separated;
• Separated vapor, gas from the reactor, the separation chamber is discharged from the vacuum extraction system, avoiding the water, gas dissolving in oil again.


Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.


Specifications

Model

DVTP-80

Capacity(L/H)

5000

Vacuum level

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Ultimate vacuum

≤ 5 Pa

Temperature range

20-80

Breakdown voltage

≥ 70KV

Parameter after purification

Water content

≤ 3ppm

Gas content

≤ 0.05%

Filtering rate

99.5%

Filtering precision

≤1 micron

Dielectric loss tgδ

≤ 0.3% (90℃)

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

48

Total power (kw)

54

Inlet/outlet(mm)

44

Weight (kg)

800

Dimension

(mm)

L

1500

W

1100

H

1600




inquiry now
