turbine oil purifier

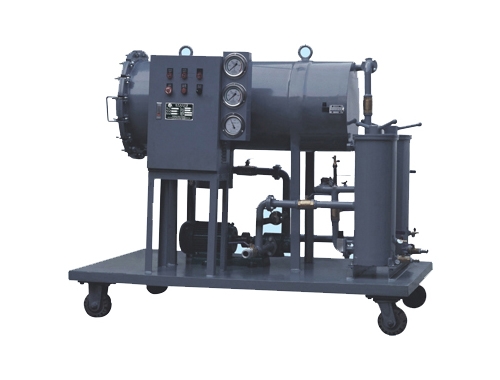

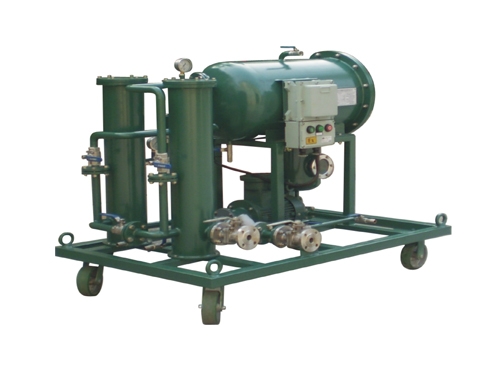

Coalescer Seperator System & Lube Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    TCP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
  • Price Range:

    $5000-20000/set
contact now
description

  Utilizing multi-stage coalescer and separator filter elements with micro-glass filter media technology into one system, Coalescer Seperator System & Lube Oil Purifier (coalescing oil purification system) is ideal for efficient and cost-effective removal of moisture and solids contamination to achieve optimal cleanliness. High efficient coalescer and separator filter elements are designed to quickly remove large amounts of water and bring overall water content down to 150 PPM. Removal of water can protect machinery by eliminating contamination resulting from corrosion and microbiological growth. The high precision micro-filter elements are capable of removing 99% of particles over 1 micron. Meanwhile, Coalescer Oil Purification System also can be used for purification of industrial low viscosity lube oil, hydraulic oil, light fuel etc.


Features:

1. Low watt density heater with digital temperature controller
2. 10 micron pre-filter and 1 micron fine turbine oil filter to remove solids contamination and protect the coalescer
3. Electric control panel for automatic operation.
4. Different pressure gauge and indicator with automatic shut-down of system
5. Replacement of micro-filter elements, coalescers and separators filter elements are available and easy
6. The Coalescer Seperator System & Lube Oil Purifier Skid-mounted, self-contained or portable system. Lower disposal and maintenance costs



Specifications

Model

TCP-10

TCP-20

TCP-30

TCP-50

TCP-100

TCP-150

TCP-200

TCP-300

Capacity(L/min)

10

20

30

50

100

150

200

300

Working pressure

≤ 0.4 Mpa

Filtering precision

≤1 micron

Water content

≤100 ppm

Cleanness level

NAS 6 grade

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Total power (kw)

1

1

1

2

2.5

3

4

5

Inlet/outlet(mm)

32

32

32

32

44

50

58

65

Weight (kg)

300

350

400

450

520

760

900

980

Dimension

(mm)

L

1200

1300

1400

1500

1600

1650

1650

1750

W

750

800

900

950

1000

1050

1100

1200

H

1400

1500

1550

1600

1650

1700

1750

1850
