Dissolved Gas Analyzer(DGA) of Transformer Insulating Oil

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    GAT
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $15000-20000/set
contact now
description

Dissolved Gases Analysis Of Transformer Insulating Oil

Content determination of dissolved gases in insulating oil by gas chromatography is set, the power supply enterprise to judge the oil filled power equipment in the operation of the existence of latent heat, discharge fault, in order to ensure the effective operation of the power grid safety, but also oil filled electrical equipment manufacturers of the equipment of the factory inspection the necessary means of GAT transformer oil chromatographic analysis system using three detector process standard recommend, a sampling can complete component of dissolved gas in insulation oil (including hydrogen, oxygen, methane, ethylene, ethane, acetylene, carbon monoxide and carbon dioxide) full content analysis.


Determination of Gas Content Of Transformer Insulating Oil

Insulating oil gas content is an important index of oiliness supervision. At present, according to the DL/T450-1991 method of making carbon dioxide elution method is suitable for determining not only acid gas containing oil, according to the DL/T423-91 method for vacuum pressure difference method for vacuum instrument is not easy and the existence of the limitations of the.GC-7820 transformer oil spectrum analysis of process design of the system fully in line with the People's Republic of China electric power industry standard DL/T 703-1999< gas content in insulating oil by gas chromatography method in the chromatographic process design. The machine is equipped with the provisions. The thermal conductivity detector with high sensitivity and hydrogen flame ionization detector, and a nickel catalyst converter, can be dissolved in transformer oil nine gas components: hydrogen, oxygen, nitrogen, carbon monoxide, carbon dioxide, methane, ethane, ethylene, acetylene measuring. Its performance to meet the requirements of gas insulated DL/T 703-1999< chromatograph oil and gas content in gas chromatography ".


Instrument configuration

Name

Model

Number

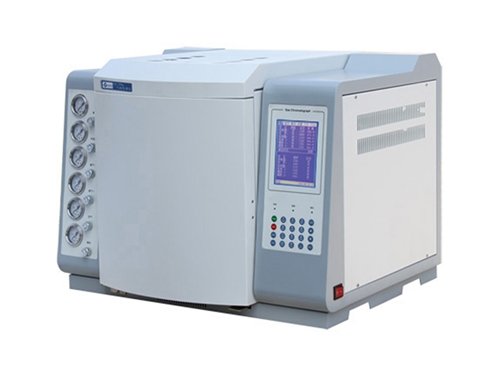

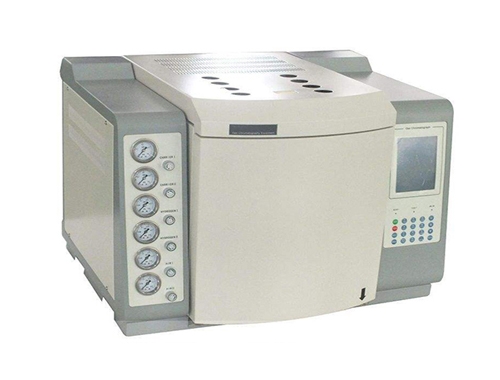

Gas chromatograph

GAT

1platform

Detector

FID

2individual

TCD

1individual

Conversion device



1The cover

Chromatographic column



1The cover

Chromatography workstation

Special power system

1The cover

Concussion instrument



1platform

Standard gas



1bottle

Gas source

Nitrogen, hydrogen, air

1The cover

Computer, printer



1The cover


Instrument performance

The first sampling, the sample volume is 1 mL, the minimum detection concentration of transformer oil(ul/L):

Component

H2

CO

CO2

CH4

C2H4

C2H6

C2H2

Minimum detectable concentration(ul/L)

2

1

5

0.1

0.1

0.1

0.1
