Products
insulating oil purifier

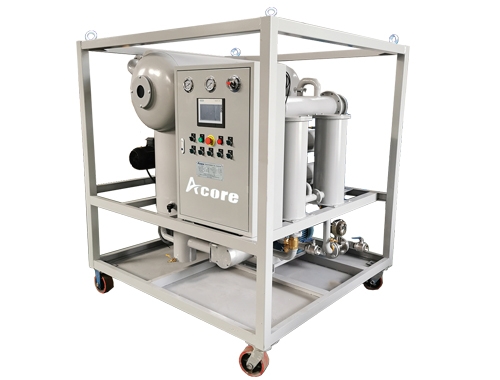

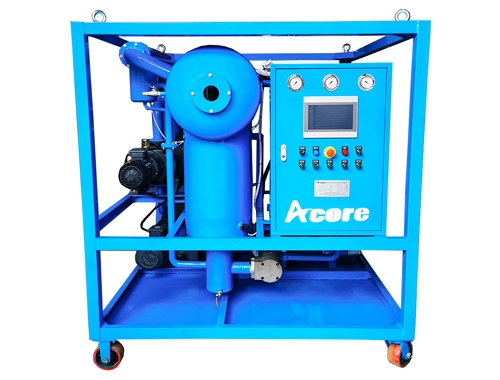

Double Stages Vacuum Insulating Oil Purifier

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DVTP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

  Double Stages Vacuum Insulating Oil Purifier (DVTP) is wildly used for purification treatment of transformers insulating oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil and other insulation oil. It can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. DVTP Double Stages Vacuum Insulating Oil Purifier can satisfy the requirements of manufacturing, installation or maintenance of electric equipment, especially for above 110KV EHV transmission and distribution equipment, and more than 500KV UHV transformers etc. Series DVTP insulation oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum filling for transformers and electric equipment.



Features

1. Advanced design, high degree of automation, compact size, light weight, flexible and convenient mobile.

2. High filtration precision holds much of sludge, remove the fine particulates out from the oil.

3. Unique degassing, dehydrated material, its evaporation area one hundred times larger than conventional materials.

4. Advanced fuzzy oil temperature control system , the oil temperature upper and lower bounds can be arbitrary set , make the oil temperature to be interval control.

5. Interlock protection device of insulating oil filtration machine realizes automatic control and automatic protection, safe and reliable, simple operation and convenient.

6. High efficient vacuum degassing and dehydration system, high precision filter elements.

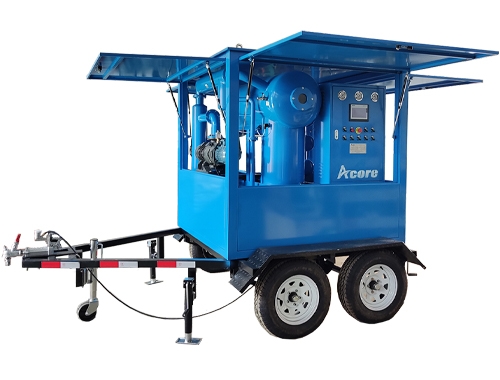

Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.



Specifications

Model

DVTP-30

DVTP-50

DVTP-65

DVTP-80

DVTP-100

DVTP-150

DVTP-200

DVTP-250

DVTP-300

Capacity(L/hour)

1800

3000

4000

4800

6000

9000

12000

15000

18000

Vacuum pressure

-0.08-0.099 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20-80

Continuous work

≥200 hr

No failure running

≥5000 hr

Power supply

208V/220V/380V/400V/415V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

65 dB

Heating power (kw)

24

30

40

48

60

90

125

136

150

Total power (kw)

27

33

45

54

68

100

135

148

165

Inlet/outlet(mm)

32

32

38

38

45

45

57

76

89

Weight (kg)

600

650

750

800

900

1200

1800

1950

2300

Dimension

(mm)

L

1500

1600

1650

1700

1850

1950

2000

2100

2150

W

1450

1500

1550

1600

1650

1750

1850

1950

2000

H

1500

1550

1600

1700

1800

1880

1980

2040

2100
