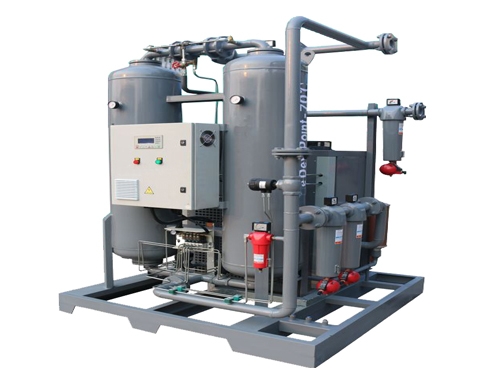

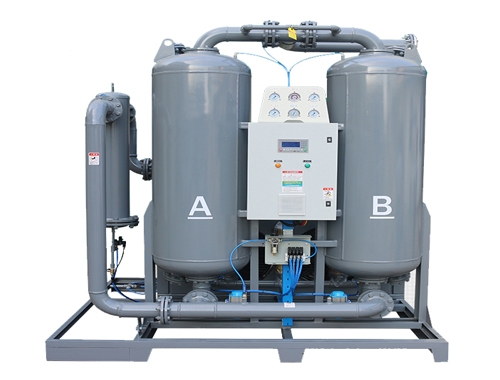

DRC Combination Compressed Air Dryer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DRC
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

   DRC Combination Compressed Air Dryer is mainly composed of refrigerating air dryers and desiccant dryers. Among them, the cold dryer has the advantages of no air loss and low energy consumption, but has the limitation of high dew point temperature, and sucks. Although the dryer has the advantage of low dew point, it has the disadvantages of large loss of regeneration gas and high energy consumption. The low dew point combined compressed air dryer developed has the advantages of the dryer and the dryer, and maximizes the advantages of both through reasonable piping and capacity matching. Good economic operating point and high quality low dew point compressed air.


Features

1. Very low dew points can be achieved without potential freeze-up. Lower dew point: -40℃ for normal. -70℃for special requirement

2.Lower Air consumption: 3%-5%

3.Patented design in water separator: 99.9% water be separated

4. Using high performance activated alumina with long life

7. Advanced PLC controller with automatic timing, automatic switching, working time setting, fault alarm and other functions, dynamic display of operating status.

8. High quality and efficient heat exchange and condenser.

9. The internal wall of the simplified body is professionally rust-proof, and it is not rusted for 10 years.


Technical data

Working pressure

≤1MPa

Purge air

≤3%

Pressure Dew point

-20~-40

(Option:70)

Temperature of inlet air

≤80

Cooling type

Air or water cooling(option)

Ambient Air Temperature

≤45℃

Desiccant type

Heated, heatless or blower purge (option)

Oil content in inlet air

<0.1mg/m3

Control method

PLC

Protection grade

IP55

Desiccant

activated alumina or molecular sieve

Power supply

380V,50HZ,3Phase

( or Customized )



Specification

Model

Capacity

(m3/min)

Connection  (mm)

Power

(KW)

Weight

(kg)

Dimensions (mm)

L

W

H

DRC-3

3

DN25

2

400

1700

550

1850

DRC-5

5

DN32

2.5

520

2000

650

1900

DRC-6

6

DN32

2.8

620

2200

720

1900

DRC-10

10

DN50

5.5

850

2500

800

2000

DRC-15

15

DN50

9.4

1100

2700

950

2000

DRC-20

20

DN65

15

1500

2900

1020

2200

DRC-30

30

DN80

20.3

1850

3100

1100

2200

DRC-40

40

DN100

28

2250

3250

1200

2500

DRC-50

50

DN100

35.5

2850

3400

1500

2550

DRC-60

60

DN125

38

3200

3800

1800

2600

DRC-80

80

DN125

53.5

3500

3950

2000

2800

DRC-100

100

DN150

60

4850

4200

2500

3000

DRC-150

150

DN150

70.5

5730

4500

2600

3200
