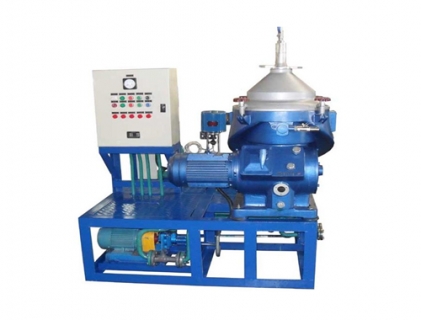

Heavy Ship Diesel Oil Centrifuge Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DCP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $20000-50000/set
contact now
description

  Disc-type Diesel Oil Centrifuge Machine is mainly used for separation of free water and impurities from heavy ship diesels, it plays a role in the clarification and purification, reduce operating costs and extend the life of the ship engine. Meanwhile, Disc-type Diesel Oil Centrifuging Machine also can be applied to turbine oil, lubricating oil, hydraulic oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil.


Features

1. An ultra-high speed separator to the continuous separation of solid impurities and moisture from the pending purification medium.
2. Advanced design, manufacture and acceptance comply with the disc separator GB/T5745-2002 "marine"
3. Efficient new heating system, high efficiency, uniform heating.
4. Integrated multi-system, the operation is simple, safe and reliable.
5. Automatic trash, continuous and efficient diesel oil purifier


Specification

Model

Unit

DCS-10

DCS-20

DCS-30

DCS-40

DCS-60

DCS-80

DCS-100

Capacity

L/hr

1000

2000

3000

4000

6000

8000

100000

Separating-factor

a/g

8000

8400

8800

9400

10000

10600

11200

Running speed

r/min

8300

Particles

μ

1

Water content

ppm

≤100

Pressure

MPa

≤0.2

Temperature

10-80

Cleanness



NAS 6 grade

Power Supply



380V, 50HZ, 3PH (Customerized)

Sludge-discharge



Automatic

Motor Power

kW

4

6

8

8

12

16

20

Heater Power

kW

24

27

30

35

45

55

65

Total Power

kW

28

33

38

43

57

71

85

Weight

Kgs

480

650

850

900

1000

1100

1200



Dimension



L

mm

1000

1000

1100

1200

1300

1350

1400

W

mm

700

750

800

900

950

1000

1100

H

mm

1000

1100

1100

1200

1250

1300

1350



inquiry now
