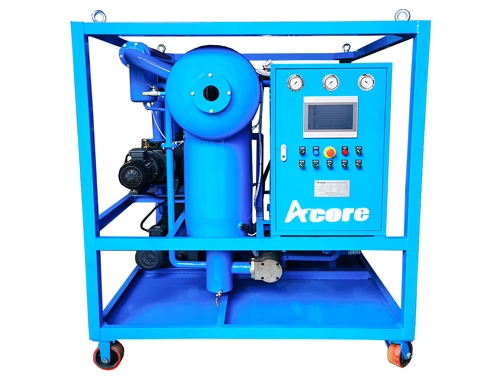

High Vacuum Dielectric Oil Purifier (Oil Filtration Machine)
Product Origin:
ChinaBrand:
ACOREItem No.:
DVTPShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT, LC, Western Union
To meet the needs of the power maintenance department on-site maintenance of various types of high and low voltage oil immersed electric equipment, ACORE developed DVTP Dielectric Oil Purifier (Oil Filtration Machine) with vacuum dehydration, degassing and filtration system, it can quickly eliminate free water, dissolved water, particles, acetylene, hydrogen and other harmful contaminants from insulating oil effectively to enhance oil's dielectric strength and ensure electrical equipment operating safely and usually. Series DVTP Dielectric Oil Purifier is particularly ideal for treating high-grade insulating oil, super-voltage insulating oil as well as new insulating oil. It may be used for purification of more than 110V substation reside line function onsite. At the same time, DVTP Dielectric Oil Purifier can be used for transformer vacuum drying and oil filling.
Features
1. Vacuum dehydration and degassing, mechanical precision filtering, molecular adsorption, vacuum drying and spiral spray atomization control to remove moisture, impurities, carbon, acid, acetylene and other contaminants.
2. Two stages vacuum separation technology, three-dimensional separation tower system, infrared progressive scan automatic control system and rapid evaporation system.
3. The control interlock protection device, over-voltage alarm shutdown protection and phase sequence protection to ensure a reliable long-term operation of the machine
4. Automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic foam eliminating system
5. Multi-level precision filter elements can remove all impurities more than 1 micron.
6. Result of purification process:
A. One pass: water content: ≤100ppm, gas content: ≤1%, breakdown voltage: ≥50KV
B. Second pass: water content: ≤10ppm, gas content: ≤0.1% (volume), breakdown voltage: ≥60KV
C. Three pass: ≤3ppm, Residual gas: ≤0.01%, breakdown voltage: ≥75KV
Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.
Technical Specifications
Model
DVTP-30
DVTP-50
DVTP-65
DVTP-80
DVTP-100
DVTP-150
DVTP-200
DVTP-250
DVTP-300
Capacity(L/hour)
1800
3000
4000
4800
6000
9000
12000
15000
18000
Vacuum pressure
-0.08~-0.099 Mpa
Working pressure
≤ 0.4 Mpa
Temperature range
20-80℃
Continuous work
≥200 hr
No failure running
≥5000 hr
Power supply
208V/220V/380V/400V/415V/480V/575V (+/-10%), 50/60Hz, 3Phase
Working noise
65 dB
Heating power (kw)
24
30
40
48
60
90
125
136
150
Total power (kw)
27
33
45
54
68
100
135
148
165
Inlet/outlet(mm)
32
32
38
38
45
45
57
76
89
Weight (kg)
600
650
750
800
900
1200
1800
1950
2300
Dimension
(mm)
L
1500
1600
1650
1700
1850
1950
2000
2100
2150
W
1450
1500
1550
1600
1650
1750
1850
1950
2000
H
1500
1550
1600
1700
1800
1880
1980
2040
2100
-

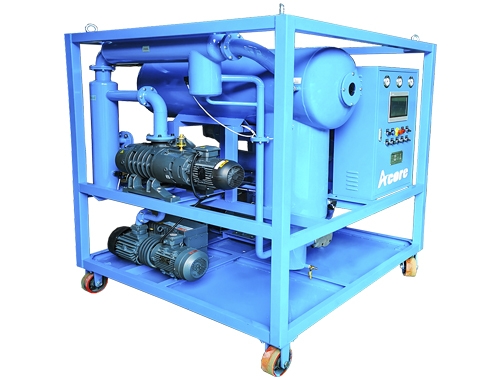

DVTP Double Stages Vacuum Transformer Oil Purifier
DVTP Double Stages High Vacuum Transformer Oil Purification Machine (Oil Purifier) adopts double stages dehydration, degassing chambers and three stages filtration systems, which can quickly improve dielectric strength, reduce water, gas and particle content and other contaminants.
-

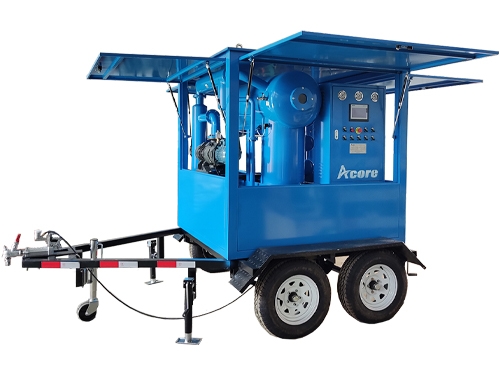

MTP Mobile Transformer Oil Purification Treatment Plant Mounted On Trailer
