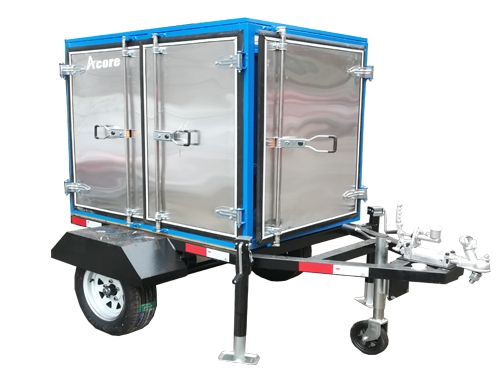

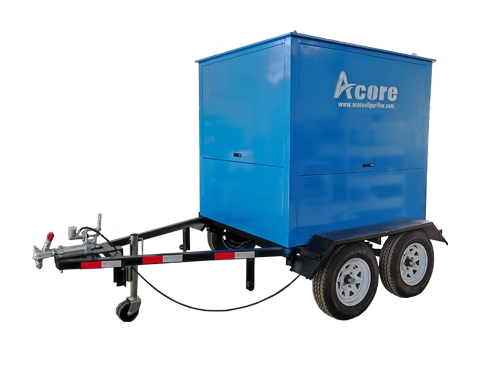

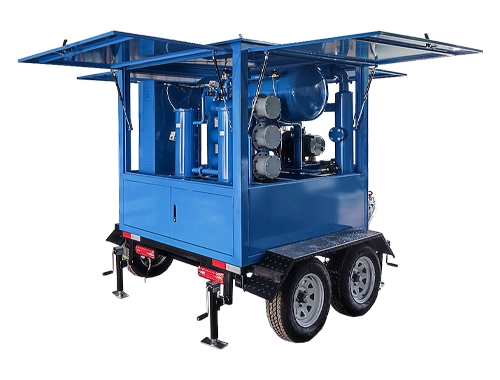

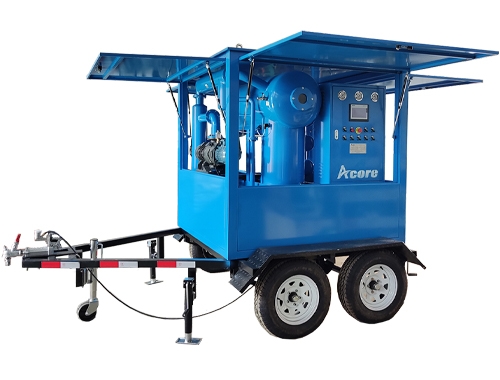

MTP Mobile Transformer Oil Filtration Machine On Trailer

MTP Mobile Transformer Oil Filtration Machine On Trailer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    MTP
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Customized
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $10000-30000/set
contact now
description

Application

MTP High Vacuum Transformer Oil Purifier with Mobile Trailer is specially developed for transformer insulating oil degassing dehydration, filtration processing onsite at outside. It adopts full enclosed structure with function of weather proof and also uses double stages high vacuum system and vacuum separators, which belongs to DVTP Double Stages Vacuum Transformer Oil Purifier and can quickly remove free water, trace moisture, gas, particles, other contaminants.  Meanwhile, the mounted trailer can be carried out on road and off road.


  The Mobile Trailer Transformer Oil Filtration Machine is very effective, durable, and user-friendly high vacuum purification system on the market today. Special engineered design features maximize the water extraction rates of our systems, and top-quality components and workmanship ensure years of maintenance-free operation and performance.



Features

• Double axles or single axle trailer with functions of weather proof on road or off road.

• Bridge shock absorber, braking system and steel welding of entire trailer guarantee max 80km/h speed.

• Transformer Dry-Out and Filling capabilities

• High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.

• Overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.

• Achieving soluble air and gas content of ≤0.1%

• Achieve ≥75kV per ASTM 877 dielectric strength.

• Online oil purification processing, vacuum drying and vacuum oil-filling for electric equipment.

• Reducing overall operational and maintenance cost of power energy systems.



Optional: Online moisture monitor, flow meter, oil regeneration system, dielectric strength tester, etc.


Technical Specifications

Model

  MTP-30

  MTP-50

 MTP-65

MTP-80

MTP-100

MTP-150

MTP-200

MTP-250

MTP-300

Capacity(L/hour)

1800

3000

4000

4800

6000

9000

12000

15000

18000

Vacuum pressure

-0.06-0.099 Mpa

Vacuum System

Double Stages

Working pressure

≤ 0.4 Mpa

Temperature range

2080

Power supply

208V/220V/380V/400V/415V/480V/575V (+/-10%), 50/60Hz, 3Phase

Working noise

68 dB

Trailer Type

Single Axle or Double Axles

Heating power (kw)

24

30

40

48

60

90

110

130

150

Total power (kw)

27

35

45

54

66

100

120

145

168

Inlet/outlet(mm)

32

32

40

44

50

55

60

65

70

Purifier Weight (kg)

600

650

700

800

900

1050

1500

1800

2000

Trailer Weight (kg)

350

350

380

420

500

580

650

800

900

Purifier

Dimension

(mm)

L

1450

1600

1700

1750

1850

1950

2050

2150

2250

W

1450

1450

1500

1550

1600

1700

1750

1800

1850

H

1500

1500

1650

1700

1750

1800

1850

1900

2000

Trailer Dimension

(mm)

L

2800

2800

2800

2850

2900

2900

3000

3100

3200

W

1450

1450

1500

1550

1650

1750

1800

1850

1900

H

900

900

900

1000

1000

1000

1100

1100

1100
