mobile vacuum transformer oil purifier

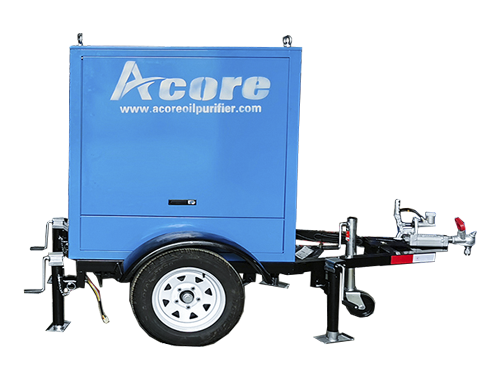

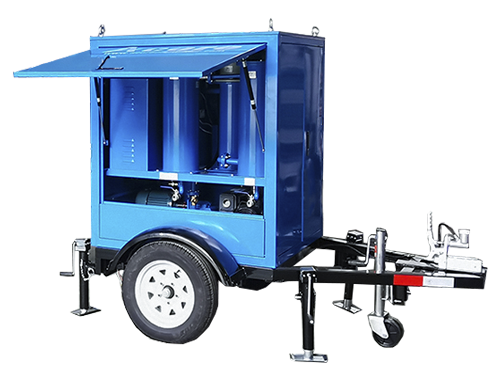

VTP-M Mobile Vacuum Transformer Oil Purifier On Trailer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VTP-M
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $8000-20000/set
contact now
description

  VTP-M Mobile Trailer Single Stages Vacuum Transformer Oil Purifier is adopts single stage vacuum filtration system, it is designed for purification of transformer oils at outside. It adopts full enclosed structure with function of weather proof with single axle trailer. The transformer oil filtration machine adopts unique and advanced vacuum dewatering, degassing components and high precision filters, after purification, it greatly improves oil dielectric strength. VTP-M mobile oil purifier can be carried out on road and off road. Meanwhile, it also works with other electrical insulating oil such as cable, circuit breakers, capacitor etc.


Features
1.Single axle trailer with functions of weather proof on road or off road.
2.Transformer Dry-Out and Filling capabilities
3.High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
4.Overall water content of ≤5-10 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
5.Achieving soluble air and gas content of ≤0.5%
6.Achieve ≥60kV per ASTM 877 dielectric strength.
7.Online transformer oil filtration machine with vacuum drying and vacuum oil-filling for electric equipment.


Optional: Online moisture monitor, flow meter, oil regeneration system, dielectric strength tester, etc.


Specifications

Model

VTP-M10

VTP-M20

VTP-M30

VTP-M50

VTP-M70

VTP-M80

VTP-M100

Capacity(L/min)

10

20

30

50

70

80

100

Vacuum level

-0.06-0.095 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20 80

Filtering precision

≤1 micron

Breakdown voltage

≥ 60KV

Water content

≤ 5ppm

Gas content

≤ 0.1%

Filtering particles

99.5%

Power supply

208V/220V/380V/400V/415/440V/460V/480V(+/-10%), 50/60Hz, 3Ph (or customized )

Working noise

65 dB

Heating power (kw)

15

24

30

36

60

60

72

Total power (kw)

17

28

35

42

66

67

80

Inlet/outlet(mm)

24

24

32

32

44

44

50

Weight (kg)

600

650

750

800

900

950

1000

Dimension

(mm)

L

2500

2500

2500

2600

2800

2800

3000

W

1550

1550

1600

1600

1650

1650

1700

H

1800

1800

1850

1900

1950

1950

2000



Request A Quote
