Products
oil press filter

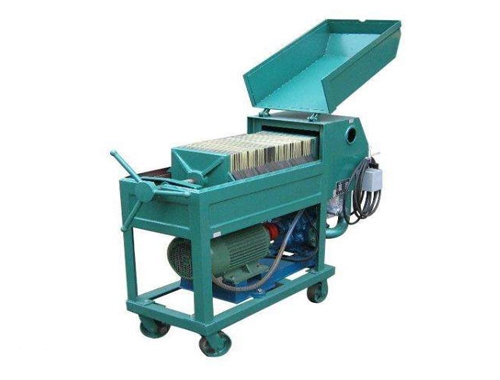

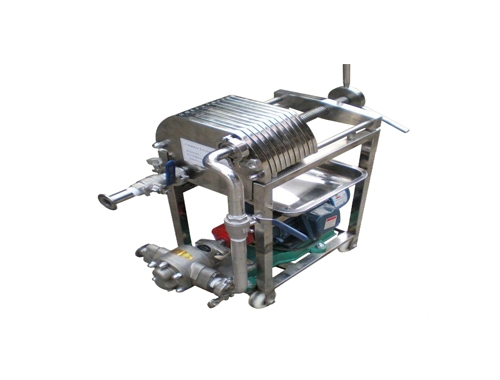

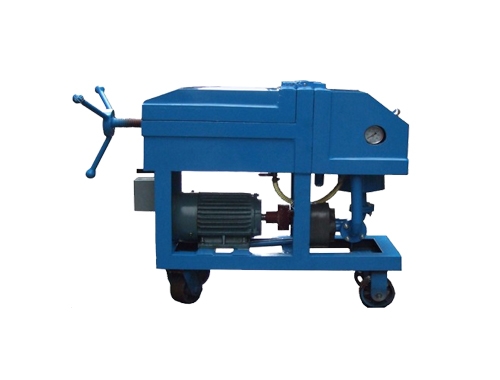

PF Plate Frame Press Oil Filter Machine (Oil Purifier)

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    PF
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $2000-10000/set
contact now
description

  PF Plate and frame type oil press filter machine is developed to be as a highly portable filtration system which can be used for purify lube oils, insulating oils, fuels and cooking oils, this press filter carts is formed by inlet pump, filter frame, filter plate and filter papers for removal of less water and particulate. Between the filter plates are the filter papers through which the filtered oil will pass. The filter papers only let the fluids pass through. During the filtering process, the filter papers will retain any solids and thereby form a filter cake. Such solids builds up on the papers and leads to an increase in pressure. After the pressure reaches a certain level, the filter papers need to be cleaned. PF plate and frame press oil filtration machine is wildly used in petroleum, machinery production, foods, power industry etc.


Features:
1. Inlet strainer to protect oil pump
2. Pressure gauge indicate the condition of filter frame and change of filter papers
3. NEMA 4 electrical control panel
4. Push-button on-off switch to easy operation
5. Cart type, self-contained and easy to move from job to job.


Technical Specifications

Model

  PF-30

  PF-50

 PF-100

  PF-125

 PF-150

  PF-200

PF-300

  Capacity( L/min)

30

50

100

125

150

200

300

Working pressure (Mpa)

00.4

Filtering precision

≤ 1 micron

Pressure type

Manual type

Plate size (mm)

200*200mm

300*300

Filter paper size (mm)

200*200mm

300*300mm

Filter ring quantity

6

8

10

12

15

20

26

Filter plate quantity

7

9

11

13

16

21

27

Motor

Power (KW)

1.1

1.5

2.2

3

4

5.5

1.1

Speed (r/min)

1400

1400

1400

1400

1400

1400

1400

Inlet caliber

1

1 1/4

2 1/2

Outlet caliber

3/4

1 1/4

2 1/2

Dimension

800*300*600

800*400*800

1000*420*900

1000*450*950

 Weight

150

180

250

280

300

320

340
