Products
oil filtration machine

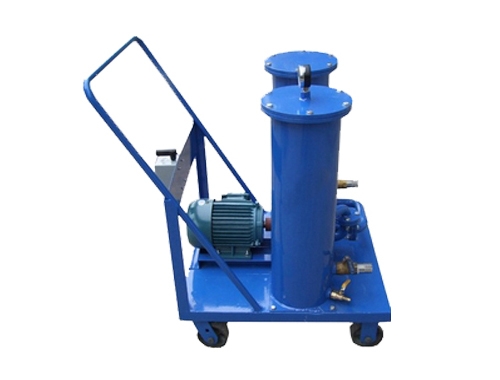

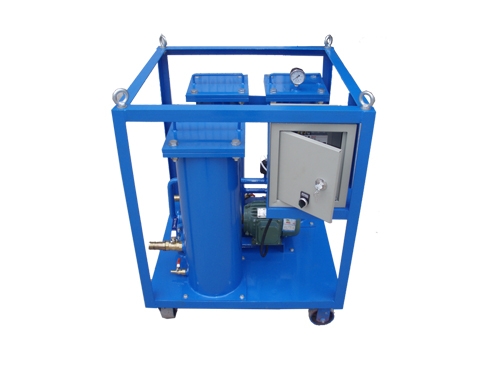

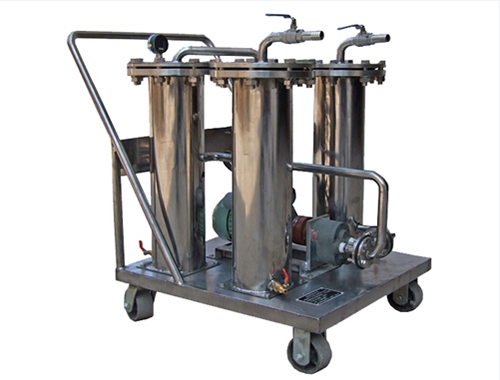

PT High Precision Portable Oil Filtration Machine (Filter Carts)

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    PT
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
  • Price Range:

    $2000-10000/set
contact now
description

  PT High Precision Portable Oil Filtration machine is designed as a full range of movable filter carts to meet critical industrial liquid filtration requirements, it use different precision multi-stage filter elements to remove different size of particles and maintain absolute clean of oil. PT portable oil filter cart is also ideal unit for pre-filter and transfer fluids to reservoirs, tank or clean up existing system, it can help users maintain fluid cleanliness, improve performance, and reduce their amount of waste and disposal costs
Range of industrial fluids applications includes

• Hydraulic oil
• Lubricating oil
• Turbine oil
• Compressor oil
• Gear oil
• Insulating oil
• Engine oil
• Water-glycol fluid
• Ester base fluid
• Fuels
• Engine Oil


Technical Specification

Model

PT-20

PT-30

PT-50

PT-80

PT-100

PT-125

PT-150

PT-200

PT-300

Capacity(L/min)

20

30

50

80

100

125

150

200

300

Work pressure

≤0.4 (Mpa)

Filter precision

≤1 micron

Cleanness

≤6 degree (NAS 1638)

Motor

Power (KW)

0.75

1.2

1.5

2.2

2.5

3

Speed(r/min)

910

930

950

960

980

1000

Power supply

208V/220V/380V/400V/415V/480V/575V (+/-10%), 50/60Hz, 3Phase

Head (m)

≥15

Inlet/outlet(mm)

20

25

32

38

44

48

50

58

65



Dimension

(mm)

L

600

800

800

800

800

810

950

950

1000

W

600

750

760

800

800

800

800

810

850

H

900

950

980

1000

1000

1000

1000

1100

1150

Weight (kg)

100

130

160

195

220

240

250

300

330





















inquiry now
