SF6 Gas Recovery

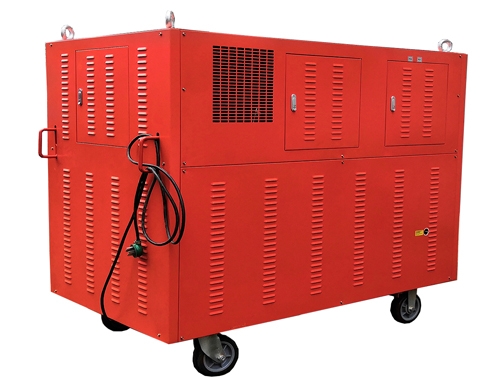

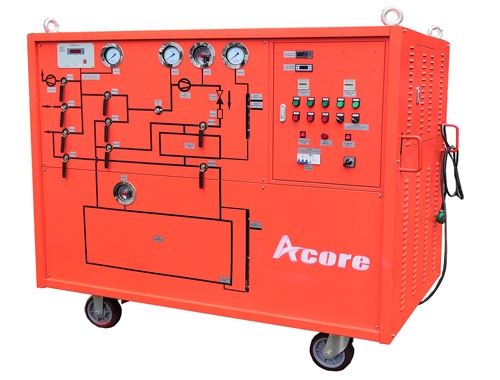

SF6 Gas Recovery, Purification & Refilling Unit

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    GRT
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

  GRT SF6 Gas Recovery, Purification & Refilling Unit is main used for manufacture, installation and maintenance of SF6 electrical equipments, such as circuit breakers, GIS(gas insulated switchgears), high-voltage transformers, high-voltage transmission lines, substations, etc. It is composed of vacuum system, compression systems, purification systems, storage system, condensing system and re-filling system.


Features

1. The use of foreign companies advanced principles and technology, advanced design, functional and reasonable structure, the operation simple and clear.
2. Adopts imported USA semi-enclosed compressor, stable performance and service life is greatly extended.
3. Vacuum system uses Germany vane vacuum pump, fast vacuum pumping speed.
4. SF6 Gas Recovery, Purification and Refilling Machine uses USA Neil filter with two-stage built-in electric heating and efficient absorption (without frequent replacement of adsorbent), greatly improving quality of SF6 gas
5. The latest patented SF6 special instruments and valves, more reliable instrument ball valve.
6. Interlocked protective system can avoid overload, over voltage, electricity leak and prevent any damages to equipments due to operating error or power failure.
8. The SF6 Gas Recovery Machine uses air-cooler, can be used without external water conditions.

Technical Specifications
1. Type: Mobile trolley type
2. Power Supply: 380V, 50HZ, 3Phase (or Customized)
3. Ambient temperature:  -10℃ to 40℃
4.Ultimate vacuum ≤ 10 Pa (special requirements can be ≤ 5Pa)
5. Vacuum pumping speed: 14 to 200 m ³ / h (different model with different speed)
6. Gas filling: initial pressure <133Pa
final pressure ≤ 0.8M Pa
Inflating speed > 6m³ / h
7. Gas recovery:  initial pressure ≤ 0.8M Pa
final pressure: standard≤0.05MP or higher ≤10 × 133Pa
recovery speed ≥12m ³ / h (different model with different speed)
recovery rate: 99.5%
8. Maximum storage pressure 4.0M Pa
9. Annual Leakage Rate <1%
10. Storage tank capacity: 100-500 kg (different model with different capacity)
11. Storage type: liquid
12. Noise ≤ 75dB sound pressure level
13. Continuously trouble-free operation> 1000 hours, cumulative trouble-free operation> 5000 hours


Model Specifications

Model

Storage capacity of tank

(Customized)

Recovery speed(Compressor capacity)

(Customized)

Vacuum pumping speed

(Customized)

GRT-30

30kg (30 liters)

7 m3/h

20 m3/h

GRT-50

50kg (50 liters)

7 m3/h

40 m3/h

GRT-100

100kg (100 liters)

12 m3/h

60 m3/h

GRT-150

150kg (150 liters)

12 m3/h

60 m3/h

GRT-200

200kg (200 liters)

14 m3/h

100 m3/h

GRT-300

300kg (300 liters)

22 m3/h

200 m3/h
