Products
cooking oil filtration

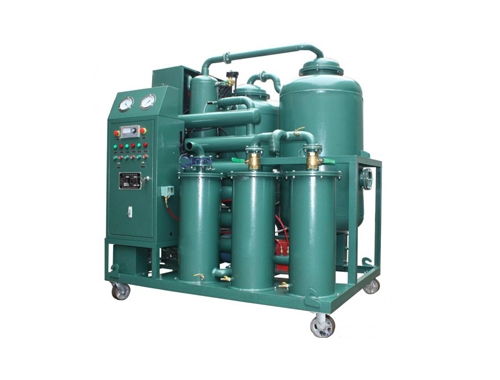

VCF Cooking Oil Filtration Machine

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VCF
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $5000-30000/set
contact now
description

  VCF Cooking Oil Filtration System(oil purifier) is developed to improve life of cooking oil and reduce frying cost by removing water, impurities, odor, acidity, color etc, instead of simply replacing the oil. Using vacuum dehydration technology with high precision different rate micro-glass filter element, it can help users stretch 20%–50% of oil usage, reduce your oil disposal needs, increase quality of your foods and provide better fried foods. VCF Cooking Oil Purifier is ideal filtration systems for cleaning of deep fryers and full fryer management.


Features

1. Stainless steel coarse filters, anti-corrosion and anti-corrupt. large capacity of holding particles
2. Using the most advanced atomizing separation technology ensure water and gas vaporized sufficient time to complete removal of moisture and gas
3. Oil level control, pressure control, voltage protection, phase sequence protection etc.
4. Heating system adopts low-load design to ensure uniform heating oil
5. Using filtration system is an extremely functional extension to any frying system.
6. With cooking oil filter machine, customers quickly benefit through longer and more consistent shortening life and reducing waste.

7. For edible usage of purified oil, we suggest to choose stainless steel body; for industrial, we suggest to choose steel carbon body.



Specifications

Model

VCF-10

VCF-20

VCF-30

VCF-50

VCF-100

VCF-150

VCF-200

VCF-300

Capacity(L/min)

10

20

30

50

100

150

200

300

Working vacuum

-0.06-0.095 Mpa

Working pressure

≤ 0.4 Mpa

Temperature range

20-80

Water content

≤20 ppm

Gas content

≤ 0.1%

Acid Value

≤0.05 mKOH/g

Cleanness

NAS 6 grade

Filtering precision

≤1 micron

Continuous work

100 hr

No failure running

≥5000 hr

Power supply

380V, 50HZ, 3PH ( or Customized )

Working noise

65 dB

Heating power (kw)

24

24

30

40

60

90

145

160

Total power (kw)

27

27

33.5

44

65

97

157

178

Inlet/outlet(mm)

25

25

32

32

48

50

58

65

Weight (kg)

300

350

400

500

800

1000

1200

1350

Dimension

(mm)

L

1100

1230

1250

1500

1650

1750

1900

2000

W

800

810

850

950

1000

1200

1250

1350

H

1250

1260

1300

1400

1600

1750

1950

2100



inquiry now
