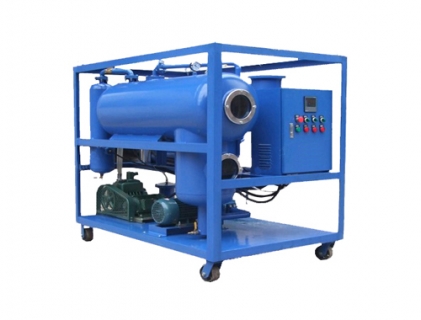

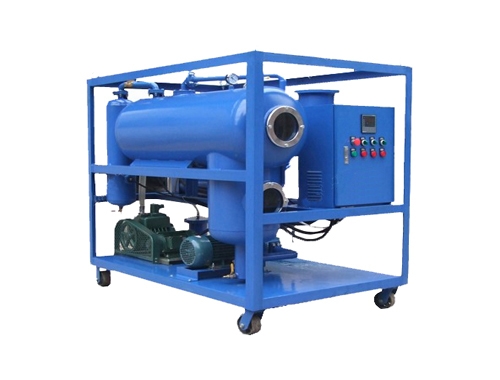

VTP Single Stage Vacuum Transformer Oil Filtration Machine
Product Origin:
chinaBrand:
ACOREItem No.:
VTPShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT, LC, Western UnionPrice Range:
$5000-30000/set
VTP Single Stage Vacuum Transformer Oil Filtration Machine (Oil Purifier) is designed for filtration, drying and degassing of insulating oil, this vacuum purification processing is a widely accepted and more economical method of treatment of insulation oil to increase and maintain insulating properties. Even new insulating oil is not enough clean to be used in high-voltage electric equipment, as it is often polluted during transportation tank and may absorb too much moisture and dust in contact with air, so new oil also needs transformer oil purifier to do purification processing before filling into transformers.
1. Increasing oil’s dielectric strength by effectively removing solid particles, gases and water, thus eliminating the need for expensive oil replacement, and thereby extending the life of the electrical equipment.
2. System is operated & monitored via use of control panel
3. Specially designed system in the degassing tank which provides uniform distribution of the processed oil in the low-pressure environment to achieve best treatment results.
4. Digital type electric heating system and safety thermostat, which is designed to allow temperature range of 20-80 ˚C.
Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.
Technical Specifications
Model
VTP-10
VTP-20
VTP-30
VTP-50
VTP-80
VTP-100
VTP-150
VTP-200
Capacity(L/min)
10
20
30
50
80
100
150
200
Vacuum level
-0.06~-0.095 Mpa
Working pressure
≤ 0.4 Mpa
Temperature range
20 ~ 80℃
Breakdown voltage
≥ 60KV
Water content
≤ 5ppm
Gas content
≤ 0.1%
Filtering rate
≥ 99.5%
Filtering
precision
≤1
micron
Continuous
work
≥200
hr
No failure running
≥5000
hr
Power
supply
208V/220V/380V/400V/415/480V/575V
(+/-10%), 50/60Hz, 3Phase
Working noise
65 dB
Heating
power (kw)
15
15
24
30
45
60
90
110
Total power
(kw)
16.5
16.5
26
32
50
66
100
120
Inlet/outlet(mm)
25
32
32
38
44
50
58
65
Weight
(kg)
250
250
300
350
500
700
900
1100
Dimension
(mm)
L
1000
1100
1200
1300
1350
1400
1500
1600
W
750
800
850
900
1000
1000
1200
1300
H
1100
1200
1300
1300
1350
1750
1900
1950
-

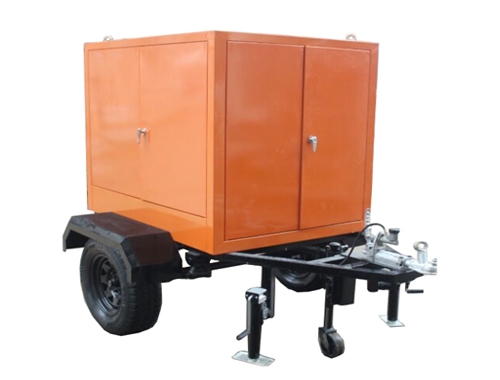

MTP Mobile Transformer Oil Purification Treatment Plant Mounted On Trailer
ACORE designed MTP Vacuum Transformer Oil Purification Treatment Machine Mounted on Mobile Trailer as online processing plant with vacuum dehydration, degassing, drying and removal of contaminants to maintain the absolutely cleanness of dielectric oil filled in transformers.
-
DVTP Double Stages Vacuum Transformer Oil Purifier
DVTP Double Stages High Vacuum Transformer Oil Purification Machine (Oil Purifier) adopts double stages dehydration, degassing chambers and three stages filtration systems, which can quickly improve dielectric strength, reduce water, gas and particle content and other contaminants.
-
TOP Turbine Oil Purifier
TOP Turbine Oil Purification Plant (Oil Purifier Machine) adopts precision filtration, vacuum drying, coalescence separation dehydration technology, this filtration system can remove free water, emulsified water and impurities to restores oil cleanliness and can make aging and emulsified turbine oil become cleaning.
-
VHF Hydraulic Oil Filtration Machine
VHF Hydraulic Oil Filtration Machine can make hydraulic lube oil achieve the oil cleaning NAS 5-6 and improve the working efficiency of hydraulic system. The Lube Oil Flushing System can keep cleaning of hydraulic oil by remove removing free, emulsified and dissolved water, free and dissolved gases, particles from oil.
-
VDF Vacuum Dehydration Oil Purification Machine
VDF Vacuum Dehydration Oil Purification System (Oil Purifier Machine) use high vacuum dehydrator plant with precise filtration system for the removal of particles, free and emulsified water, sludge and other contaminants.
-
DST Insulating Oil Tester for Dielectric Breakdown Voltage
DST transformer oil tester is designed for measurement of insulating oil dielectric breakdown voltage strength according to international standard IEC156 and ASTM.
-
VPS Vacuum Pump Machine for Transformer Drying
VPS Vacuum pump machine is consisted of vane vacuum pump and roots vacuum pump, the vacuum pump set is mainly used for vacuum transformer drying. VPS vacuum pump system can bring electric equipment to vacuum state quickly.
-
3000L/H High Vacuum Transformer Oil Purifier
DVTP50 (3000 liters/hour) Double Stage Vacuum Transformer Oil Purifier can maintain insulation properties of transformer oils periodically by purifying treatment. As one of leading suppliers of vacuum oil purifiers, ACORE Filtration Co.Ltd can design and produce oil purifier machines as according to customized specifications.
-
4000L/H High Vacuum Transformer Oil Filtration Machine
The proper purification process of dielectric insulating oils by DVTP70 (4200 liters per hour) Transformer Oil Filtration Machine will result in the improvement of the properties of the insulation system of power transformers. The 4000LPH Vacuum Transformer Oil Filter Machine can be mounted on skids or trailer to move easily from site to site.
-
6000L/H High Vacuum Transformer Oil Filtration Machine
DVTP100 (6000 liters per hour) Mobile Vacuum Transformer Oil Filtration Machine is developed as high Vacuum Oil Purification Plant (6000 LPH) for the efficient extraction of water, gases and particles from transformer insulating oils to increase oil's dielectric strength.
-
9000L/H High Vacuum Transformer Oil Purification Machine
DVTP150 (9000 liters per hour) Vacuum Transformer Oil Purification Machine can remove harmful particles, moisture, dust, air along with other gases from transformer insulating oils. This 9000 LPH Mobile Oil Treatment Plant adopts low temperature and high vacuum designs.
-
12000L/H High Vacuum Transformer Oil Filtration System
DVTP200 (12000 LPH) Double Stages High Vacuum Transformer Oil Filtration System uses high capacity vacuum system with rotary vane vacuum pump and roots vacuum pump for a large variety of vacuum dehydration and degassing applications.
-
15000L/H High Vacuum Transformer Oil Filtration Plant
DVTP250 (15000 liters/hour) High Vacuum Transformer Oil Filtration Plant can increases oil’s dielectric strength by effectively removing solid particles, gases, water and other contaminants. As the manufacturer of oil filtration systems, we developed the transformer oil filtration machines for transformer vacuum drying and oil filling at same time.
-
18000L/H High Vacuum Transformer Oil Purification System
Through the dehydration, degassing, filtration processes of DVTP300(18000 liters per hour) High Vacuum Transformer Oil Purification System, the dissolved gases and moisture, solid particulate, contamination can be completely removed.
-
DHP Dry Air Generator For Transformers
ACORE design and build DHP dry air generator for power transformers, which can supply drying air and ensure the safety of power electric equipments.
-
Online & Offline Transformer Oil Filtration Treatment Machine
High Vacuum Transformer Oil Filtration Treatment Machine supplied by ACORE is widely used for online and off-line purification of insulating oils, this oil filter machine uses special design for maximizing dehydration, degassing and filtration rate, top-quality components and workmanship, most effective and durable.
-
10000L/H High Vacuum Transformer Oil Purification Plant
DVTP165 (10000LPH) High Vacuum Transformer Oil Purification Plant integrates precision filtration, high-efficiency dehydration, degassing, vacuum evaporation technology and automatic control technology. It is easy to operate, safe and reliable. It is also used as high vacuum oil dehydration machine for industrial used oil.
