DST Oil BDV Tester for Testing Dielectric Breakdown Voltage Strength Of Insulating Oil

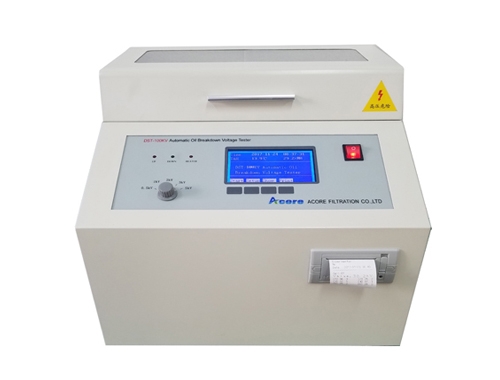

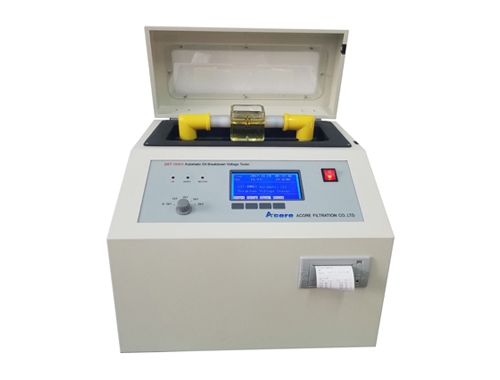

DST Oil BDV Tester for Testing Dielectric Breakdown Voltage Strength Of Insulating Oil

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DST
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    3 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $2000-3000/set
contact now
description

  In all power and distribution transformers, switchgears, load changers, cables and circuit breakers etc., transformer oil or other insulating oils are very important ingredient and used insulation liquid should have a very high dielectric strength. To test the dielectric strength of insulation liquid, we developed the DST Insulating Oil Dielectric Tester, which is completely self-contained, compact and portable set. The set has been specially designed for testing the dielectric breakdown voltage strength of insulating liquids, a very high voltage is passed through it. The failure of the dielectric strength is shown by a spark across two electrodes. The apparatus to carry out this test is manufactured by us in various voltage ranges and models, as per IEC-156 and ASTM.


Features:
1. As per specification of standard of IEC 156, ASTM D 877 and ASTM D 1816
2. Automatic self-test with HV output voltage testing variation of 0-80KV or 0-100KV
3. Built-in measurement of the temperature of the insulating liquid.
4. LCD display to rest test results and built-in printer to print out of test results automatically.
5. Capability of storing100 experimental results, displaying the current temperature.
6. At a constant speed controlled by single chip microcomputer.
7. Easy to operate, small size, light weight.


Technical Specifications

1.Power supply: AC220V ±10%, 50 HZ

2.Voltage output:0-80KV / 100K

3.Accuracy: ±2%

4.Capacity:1.6KVA, 2.0KVA

5.Pressure increase rate : 2 KVA/S

6.Pressure testing speed: 2%

7.Break down sensitivity : <2KV

8.Wave form distortion :≤3%

9.Time of breakdown: ≤10ms

10.Operational environment: Temperature:0℃-40℃,

Humidity: the most relative humidity85%

11. Storage environment : Temperature:-20℃-40℃,

Humidity: the most relative humidity75%.

12. Operational height: <150m(can be specially designed if the

height is over1500m)

13. Test cell: Glass, volume 300 to 500 ml, with protective cover and stirrer.

14. Electrodes: Stainless steel spherical36 mmdiameter/hemispherical25 mmradius,2.5 mmgap as per IEC-156, or ASTM D 877 and ASTM D 1816 (ASTM standard are option)

15.Initial stand time of oil sample: 180 seconds

Intermediate stand time of oil sample: 60 seconds

String time of oil sample:  60 seconds

Number of consecutive test: 6

16. 80KV: Weight: 45kg  Dimension: 450*450*450 mm

     100KV: Weight: 50kg  Dimension: 480*480*480 mm
