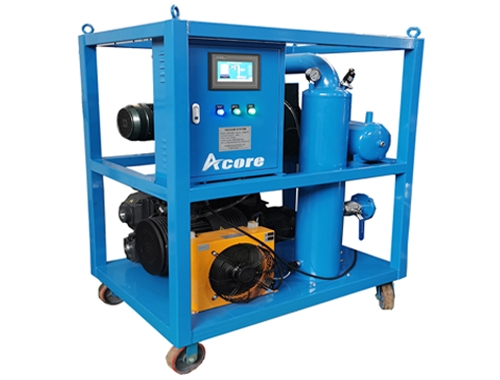

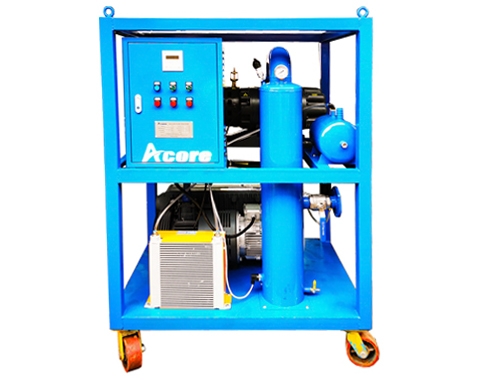

Vacuum Pump System for Evacuating Transformer

Vacuum Pump System for Evacuating Transformer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VPS
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
contact now
description

  VPS Vacuum Pump System is mainly used for drying transformer in various types of large-scale transformer installation and maintenance for high-efficiency vacuum drying. Quick air pumping, energy consumption, LCD display, mobile and flexible features. The leakage rate of the unit is less than 1%, VPS Vacuum Pump Set is equipped with anti-oil-back device and phase sequence automatic commutation system to prevent the vacuum pump from reversing.


Features

1. Applying for vacuum drying and vacuum measurement of transformers, tap changers, auxiliary switches and other electrical equipment

2. Cooling type: natural air-cooled. The vacuum pump exhaust port is provided with device for condensing and collecting moisture.

3. The control system has the perfect protection and alarm functions with phase sequence, phase, overvoltage, under-voltage, leakage detection and protection of all faults are the corresponding warning light prompt.

4. Digital vacuum gauge are installed in the back of the total valve to facilitate the detection of the vacuum transformer.

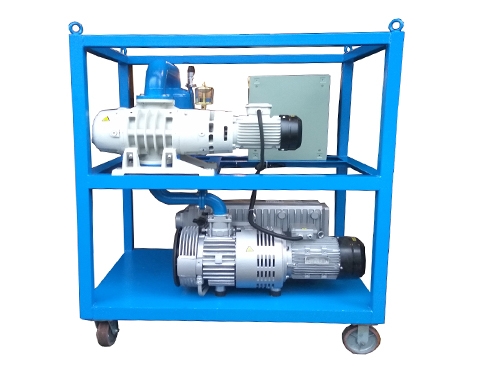

5. Rotary vane pump and Roots pump separation of water vapor and light oil for cooling, collection and emissions, to protect the vacuum pump oil from pollution, enhance the pumping capacity of the vacuum pump to improve the working vacuum.


Technical Specification

Model

VPS-250

VPS-500

VPS-1000

VPS-2000

VPS-4000

Capacity (m3/hr)

252

540

1100

2100

4200

Ultimate vacuum

≤ 0.5 Pa

Stages

Double stages

Pumping speed of vacuum pump (m3/h)

65

100

200

300

600

Pumping speed of booster pump (m3/h)

252

540

1100

2100

4200

Power (kw)

4

6.5

9

11

18.5

Power supply

208V/220V/380V/400V/415/440V/460V/480V/575V (+/-10%), 50/60Hz, 3Phase

Weight (kg)

480

650

960

1250

1560



Dimension (mm)

L

1000

1100

1360

1500

1700

W

600

650

900

1100

1150

H

1180

1350

1700

1850

1950
