Heated Desiccant Air Dryer

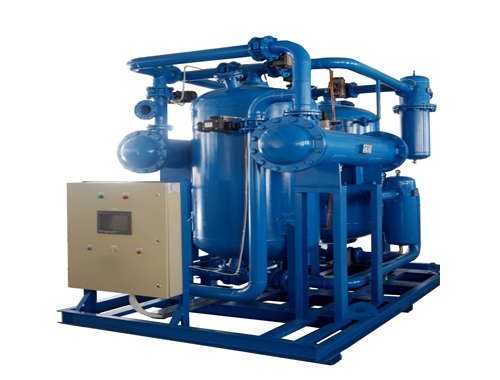

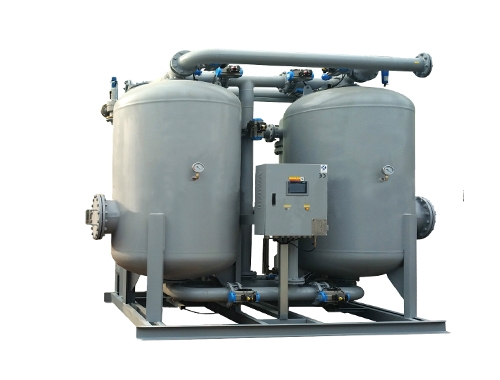

EHPD Externally Heated Desiccant Air Dryer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    EHPD
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Optaion
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
  • Price Range:

    $5000-30000/set
contact now
description

EHPD series Externally Heated Regenerative Desiccant Air Dryer uses exhaust heated purge from air compressor for regenerate the desiccant bed, it saves the power consumption and air consumption comparing to the heated purge air dryer. The original compressed air goes to the water cooling system after heating, and then enters into the tower to absorb to dried air. We use 1.5% of finished air to purge the heated desiccant, switching between two towers.


EHPD series Externally Heated Regenerative Desiccant Air Dryer is a fully automatic, PLC controlled, self-contained unit offering a fail-safe design – in the event of power interruption and air loss, the purge exhaust valves close preventing damage to the dryer and the process. The combination high moisture capacity, premium grade, high crush strength activated alumina used desiccant towers providing low velocity and high contact time through the adsorbent beds delivers long service life and consistent performance.


Technical parameter

Inlet temperature

100~150

Average purge air use

≤1-3

Pressure dew point

-40~ -70

Temperature of inlet air

≤45

Inlet pressure:

0.6~1.0MPa (or customized)

Ambient Air Temperature

≤45

Pressure drop

≤ 0.2 bar

Oil content in inlet air

<0.1ppm

Control method

PLC

Protection grade

IP55

Desiccant

activated alumina and molecular sieve

Power supply

380V,50HZ,3Phase

( or Customized )


Specification

Model

Capacity

(m3/min)

Connection  (mm)

Power

(kW)

Weight

(kg)

Dimensions (mm)

L

W

H

EHPD-5

5

DN32

0.3

1000

1600

1350

2000

EHPD-10

10

DN50

0.3

1100

1700

1550

2200

EHPD-15

15

DN50

0.3

1300

2000

1650

2300

EHRD-20

20

DN65

0.3

1600

2200

1800

2400

EHPD-30

30

DN65

0.3

2000

2500

1950

2550

EHPD-40

40

DN80

0.3

2500

2700

2200

2650

EHPD-50

50

DN100

0.5

3000

2900

2350

2800

EHPD-60

60

DN100

0.5

3600

3100

2400

3000

EHPD-80

80

DN125

0.5

4500

3250

2500

3300

EHPD-100

100

DN150

0.5

6000

3300

2550

3350

EHPD-150

150

DN200

0.5

8000

3500

2800

3350
