Products
Refrigerated Air Dryer

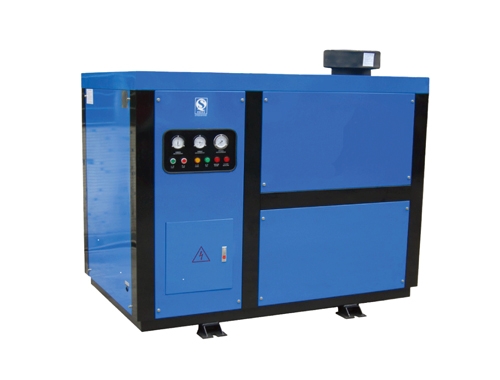

DRA Refrigerated Air Dryer

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    DRA
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT ,LC, Western Union
contact now
description

DRA series refrigerated air dryers is based on latest technology. These air dryers are designed and developed in compliance with the industry trends, these air dryers are designed as the  for air-cooled reciprocating type air compressors, which  combines an oversized refrigerated circuit, high- efficiency heat exchangers and air-water separator



The DRA series refrigerated air dryers can accept compressed air up to 85℃ and provide clean dry air at the outlet. They have been designed specifically for use with smaller reciprocating air compressors that typically do not incorporate an aftercooler. The DRA series are stringently checked before delivering to clients



Features:

1. Excellent heat exchangers realize the complete heat transfer of high temperature air at inlet and low temperature air at outlet, reducing compressor work load, Reducing power and energy consumption

2. Highly efficient moisture separation, excellent heat transfer coefficients and low pressure drop.

3. Multi-stages moisture separators adopts advanced scroll technology, increasing time of heat exchange.

4. Vertical heat exchanger, moisture separator integrated in heat exchanger prevents “Sweating” of pipes, space-saving compact design.

5. The built-in stainless steel mist eliminator and a quiet zone prevent re-entrainment of collected condensation, ensure precise dew point at any load

6. No air-cooled after cooler required for compressor, environmentally friendly refrigerant

7. Copper brazed stainless steel multi-plate or aluminum block heat exchanger, heavy duty industrial powder coated steel cabinet with access panel,

8. Reliable and constant dew-point performance in all flow conditions, protecting your compressed air system, machinery and tools; and will improve your manufacturing processes.



Technical parameter:

Working pressure

5 -10 bar

Average process air use

1%

Pressure Dew point

-40~ -70

Temperature of inlet air

≤45

Switchover

2-8hr

Ambient Air Temperature

≤45

Pressure drop

≤ 0.2 bar

Oil content in inlet air

<0.1mg/m3

Control method

PLC

Protection grade

IP65

Desiccant

activated alumina and molecular sieve

Power supply

380V,50HZ,3Phase

( or Customized )



Model Specification:

Model

Capacity

(m3/min)

Connection  (mm)

Heater

(kW)

Blower

(KW)

Weight

(kg)

Dimensions (mm)

L

W

H

DRA-13

14.5

2”

4

2.2

1100

1600

1350

2250

DRA-15

17

DN80

6

2.2

1300

1700

1550

2500

DRA-20

23

DN80

7.5

3.3

1550

2000

1650

2500

DRA-30

35

DN80

10

4.0

2100

2200

1800

2500

DRA-40

45

DN100

12.5

5.7

2600

2500

1950

2850

DRA-50

55

DN100

16

7.5

3300

2700

2200

2850

DRA-60

65

DN125

20

11

4150

2900

2350

3300

DRA-80

80

DN125

24

15

5600

3100

2500

3300

DRA-90

90

DN125

27

15

6300

3250

2500

3300

DRA-100

110

DN150

32.5

20

7700

3400

2600

3450

DRA-120

140

DN150

42.5

25

8900

3600

2600

3450

DRA-150

160

DN150

43

30

11300

3800

2900

3450

DRA-200

210

DN200

68

40

14700

4200

3200

3650

DRA-250

260

DN200

73

50

16500

4400

3300

3650
