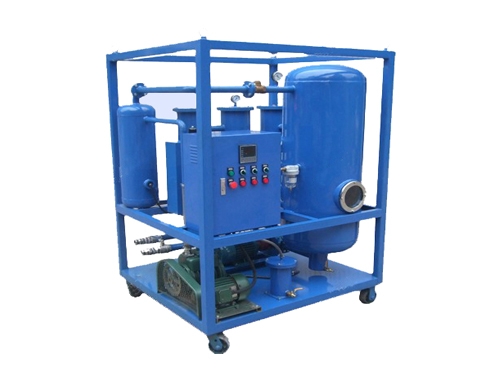

VOD Vacuum Oil Dehydration Plant

  • Product Origin:

    China
  • Brand:

    ACORE
  • Item No.:

    VOD
  • Shipping Port:

    Shanghai, Guangzhou, Shenzhen, Chongqing
  • Color:

    Option
  • Lead Time:

    10-20 days
  • Payment:

    TT, LC, Western Union
  • Price Range:

    $5000-20000/set
contact now
description

  VOD vacuum Oil Dehydrator(Oil Dehydration Plant) is specially for separating water for oil, it adopts vacuum distillation technology, can quickly and efficiently break emulsification, separate water, gas from oil. VOD is a good unique and advanced dehydration system for transformer oil, insulating oil, lube oil, hydraulic oil, turbine oil, fuel oil, cooking oil etc. VOD oil dehydration plant is good economic benefits, widely applied in petroleum, food, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.



Features

1. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil.

2. Removing 100% of free water, gas and 80% of dissolved water and gases, bring water content down to 20 ppm

3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

4. Unique and advanced dewatering system, advanced medium cooling system.

5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

6. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.



Specifications

Model

Unit

VOD-10

VOD-20

VOD-30

VOD-50

VOD-100

VOD-150

Flow rate

L/H

600

1200

1800

3000

6000

9000

Working vacuum

Mpa

-0.06 ~- 0.095

Working pressure

Mpa

≤0.3

Working Temperature

0~80

Gas Content

%

0.1

Water content

PPM

≤10

Power supply



380V 50HZ 3Ph/(As per user’s option)

Working noise

dB(A)

≤45

Total electric power

KW

30

38

45

60

80

95

Inlet (outlet)

mm

25

25

25

32

42

50

Dimension

L

mm

1300

1300

1350

1400

1500

1600

W

mm

900

950

1000

1000

1100

1150

H

mm

1200

1300

1350

1400

1450

1500

Weight

Kg

400

450

500

650

800

900
