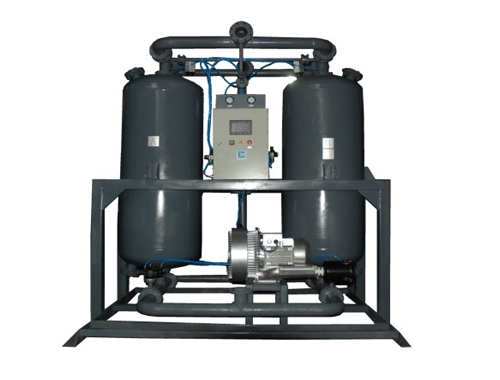

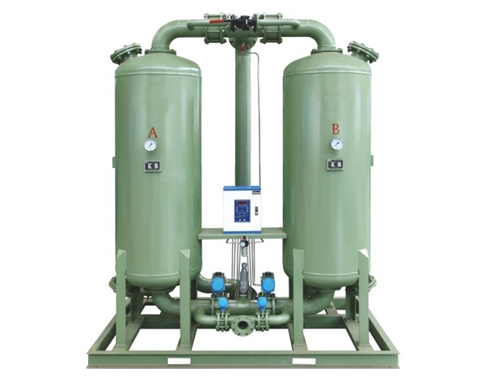

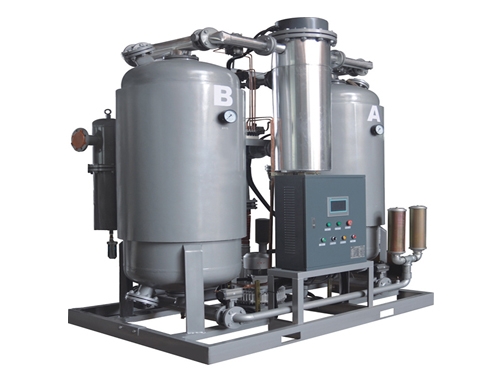

BPD Heated Blower Purge Desiccant Air Dryer
Product Origin:
ChinaBrand:
ACOREItem No.:
BPDShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT ,LC, Western UnionPrice Range:
$10000-30000/set
BPD Heated Blower Purge Regenerative Desiccant Air Dryer we design and produce for energy savings and consistent operation automatically controlled via PLC and touch screen. It uses a high efficiency blower to take in ambient air required during the heat regeneration cycle to adsorb moisture from the desiccant.
Comparing Heatless and Heated purge, the heated blower purge reduce the dry compressed air is used during the dry air cooling regeneration period for reduced heat and dew point spike at tower switchover. And the unique parallel cooling mode further reduces the heat and dew point spike prior to tower switchover.
BPD Heated Blower Purge Regenerative Desiccant Air Dryer adopts early heat regeneration termination feature. This feature terminates the heat regeneration early and eliminates the unnecessary heater and blower on-time saving energy.
Features
1. Automatically adjusts the regeneration cycle maintaining dew point and extending the drying cycle
2. Switching is less frequent, reducing dryer maintenance and fully utilizing desiccant capacity
3. Bigger purge tower and lower airflow speed improve improve reliability and performance of purge.
4. Heating regeneration cycle takes in ambient air, no compressed air is used during this phase.
5. PLC programmable controlling system, NEMA 4steel enclosure, easy operation and easy reading.
7. 6. Interlocked protective system, safety and reliable
Technical parameter
Working pressure |
5 -10 bar |
Average process air use |
1% |
Pressure Dew point |
-40℃~ -70℃ |
Temperature of inlet air |
≤45℃ |
Switchover |
2-8hr |
Ambient Air Temperature |
≤45℃ |
Pressure drop |
≤ 0.2 bar |
Oil content in inlet air |
<0.1mg/m3 |
Control method |
PLC |
Protection grade |
IP65 |
Desiccant |
activated alumina and molecular sieve |
Power supply |
380V,50HZ,3Phase ( or Customized ) |
Model Specification
Model
Capacity
(m3/min)
Connection (mm)
Heater
(kW)
Blower
(KW)
Weight
(kg)
Dimensions (mm)
L
W
H
BPD-15
15
DN65
4
2.2
1100
1600
1350
2250
BPD-20
20
DN65
6
2.2
1300
1700
1550
2500
BPD-30
30
DN80
7.5
3.3
1550
2000
1650
2500
BPD-40
40
DN80
10
4.0
2100
2200
1800
2500
BPD-50
50
DN100
12.5
5.7
2600
2500
1950
2850
BPD-60
60
DN100
16
7.5
3300
2700
2200
2850
BPD-70
70
DN125
20
11
4150
2900
2350
3300
BPD-80
80
DN125
24
15
5600
3100
2500
3300
BPD-90
90
DN150
27
15
6300
3250
2500
3300
BPD-100
100
DN150
32.5
20
7700
3400
2600
3450
BPD-150
150
DN200
43
30
11300
3800
2900
3450
BPD-200
200
DN200
68
40
14700
4200
3200
3650
BPD-250
250
DN200
73
50
16500
4400
3300
3650
-
